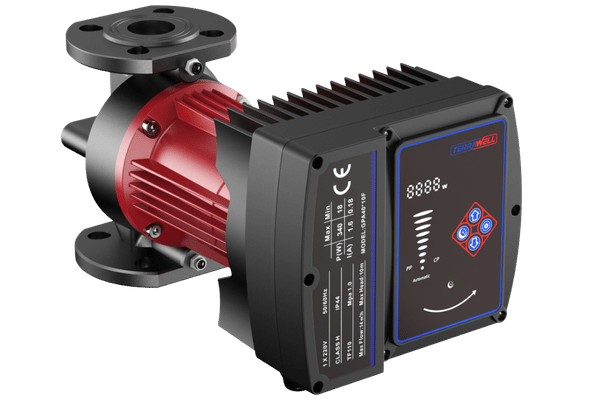

GPA-F
Flanged Circulator with Permanet Magnet Motor
HVAC
Construction sites/factories
Domestic Water Supply
GPA-F energy-saving circulation pump adopts permanent magnet motor, featuring compact structure, quiet running and leakage-free design. It supports intelligent adjustable modes and meets ERP efficiency standard (EEI ≤0.23), widely used for domestic heating & hot water circulation systems.
01
/
03
Working Condition
Medium temperature
2~+110℃
Ambient temperature
≤40°C
Proetction
1.0 MPa
EEI
≤0.23
Pump
- Energy saving, EEI ≦ 0.23-part2;
- Leak-free, long service life, low noise
- Power display, multi-speed integrated
- Anti-condensation,suitable for hot & cold water circulation;
- Multi-protection
Motor
Permanet Magnet Motor
Single Phase: 220-240v/50Hz/60hZ
Insulation Class: H
Product Parameters
| Model | Voltage | Power(w) | Max.flow (m3/h) | Max.head(m) | L1(mm) | L2(mm) | L3(mm) | L4(mm) | D(mm) | DN(mm) |
| GPA32-12F | 220V/50Hz | 340 | 14 | 12 | 220 | 165 | 388 | 65 | 150 | 32 |
| GPA40-10F | 220V/50Hz | 340 | 14 | 10 | 220 | 165 | 388 | 65 | 150 | 40 |
| GPA40-12F-220 | 220V/50Hz | 630 | 22 | 12 | 220 | 165 | 388 | 65 | 150 | 40 |
| GPA40-15F-220 | 220V/50Hz | 790 | 24 | 15 | 220 | 165 | 388 | 65 | 150 | 40 |
| GPA40-18F-220 | 220V/50Hz | 900 | 25 | 18 | 220 | 165 | 388 | 65 | 150 | 40 |
| GPA50-12F | 220V/50Hz | 560 | 23 | 12 | 280 | 165 | 395 | 72 | 165 | 50 |
| GPA50-12F-280N | 220V/50Hz | 820 | 29 | 12 | 280 | 165 | 395 | 72 | 165 | 50 |
| GPA50-15F-280 | 220V/50Hz | 990 | 31 | 15 | 280 | 165 | 395 | 72 | 165 | 50 |
| GPA50-18F-280 | 220V/50Hz | 1000 | 31 | 18 | 280 | 165 | 395 | 72 | 165 | 50 |
| GPA65-15F | 220V/50Hz | 1300 | 47 | 15 | 340 | 165 | 403 | 80 | 185 | 65 |
