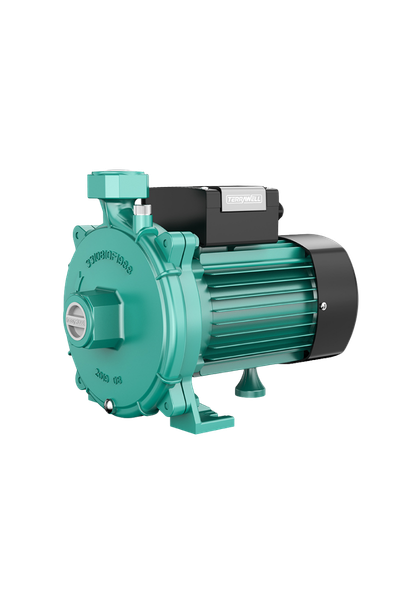

PUN

Hot Water Horizontal Pipeline Pump

HVAC

Construction sites/factories

Commercial buildings

Domestic Water Supply

PUN series as horizontal centrifugal pump features compact structure and high effciency. In practical applications, compared with traditional same performance centrifugal pumps, the energy-saving effect can reach 20%-50%. It is ideal for domestic water boosting, garden irrigation and small HVAC circulating systems.

01 / 03

Working condition

Medium temperature

-15~+90℃

Ambient temperature

≤40°C

Max working pressure

0.5MPa

Proetction

IP 44

Pump

PPO/S.S. impeller
Energy saving (saving effect can achieve 20~50% compare to general pump)
Low noise:40~65dB
Compact structure, space saving

Motor

Single Phase: 220V/50Hz

Three Phase: 380V/50Hz

Motors of other voltages are available upon request.

Single phase with thermal protector

Insulation Class: F

Product Parameters

MODEL	POWER		MAX.HEAD (m)	MAX.FLOW (L/min)	RATED HEAD (m)	RATED.FLOW (L/min)	FLUID temp (℃)	SPEED rpm	INLET OUTLET
MODEL	(kW)	(HP)	MAX.HEAD (m)	MAX.FLOW (L/min)	RATED HEAD (m)	RATED.FLOW (L/min)	FLUID temp (℃)	SPEED rpm	INLET OUTLET
PUN-201EH	0.2	0.26	16	85	10	50	0-90	2900	1"*1"
PUN-202EH	0.2	0.26	16	85	10	50	0-90	2900	1.25"*1.25"
PUN-401EH	0.37	0.5	20	90	15	50	0-90	2900	1"*1"
PUN-400EH	0.37	0.5	20	90	15	50	0-90	2900	1.25"*1.25"
PUN-403EH	0.4	0.53	23	110	16	67	0-90	2900	1"*1"
PUN-402EH	0.4	0.53	23	110	16	67	0-90	2900	1.25"*1.25"
PUN-601EH	0.6	0.8	28	125	20	67	0-90	2900	1"*1"
PUN-602EH	0.6	0.8	28	125	20	67	0-90	2900	1.25"*1.25"
PUN-750EH	0.75	1	26	200	18	110	0-90	2900	1.25"*1.25"
PUN-751EH	0.75	1	32	125	20	83	0-90	2900	1.25"*1.25"
PUN-1100EH	1.1	1.5	30	270	23	133	0-90	2900	1.5"*1.5"
PUN-1500EH	1.5	2	24	470	20	267	0-90	2900	2"*2"
