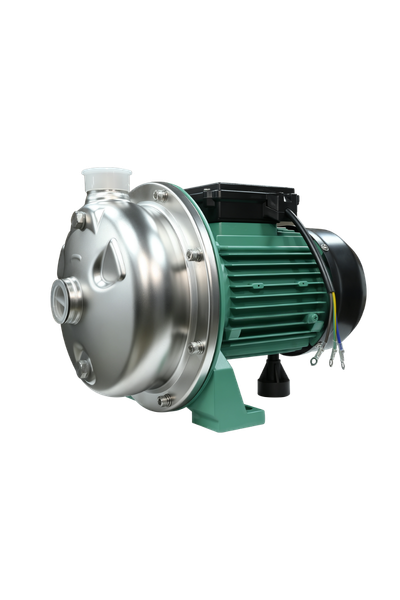

TLF
Stainless Steel Centrifugal Pump
HVAC
Construction sites/factories
Commercial buildings
Domestic Water Supply
TLF series stainless steel centrifugal pump with SUS304/316 wetted components, IP55 F-class insulated motor and built-in thermal protection, is widely used in air energy, solar energy, refrigeration and underfloor heating circulating water systems.
01
/
03
Working condition
Medium temperature
20~+104℃
Ambient temperature
≤50°C
Max working pressure
0.8MPa
0.3MPa:TLF3-12(T) TLF4-13(T)
Proetction
IP 44
Pump
- S.S. impellers
- S.S.middle section
- Pure copper motor wire
- Multistage impellers
- Low noise
Motor
Single Phase: 220~240V/50Hz
Three Phase: 380~415V/50Hz
Motors of other voltages are available upon request.
Single phase with thermal protector
Insulation Class: F
Product Parameters
| MODEL | POWER | RATED.HEAD(m) | RATED.FLOW(L/min) | SPEED(RPM) | INLET OUTLET |
|
| kW | HP | |||||
| TLF3-12(T) | 0.25 | 0.34 | 12 | 50 | 2900 | 1''x 1'' |
| TLF4-13(T) | 0.37 | 0.5 | 13 | 67 | 2900 | 1''x 1'' |
| TLF4-15(T) | 0.55 | 0.74 | 15 | 67 | 2900 | 1''x 1'' |
| TLF4-20(T) | 0.75 | 1 | 20 | 67 | 2900 | 1''x 1'' |
| TLF7-15(T) | 0.75 | 1 | 15 | 117 | 2900 | 1.25''x 1.25'' |
