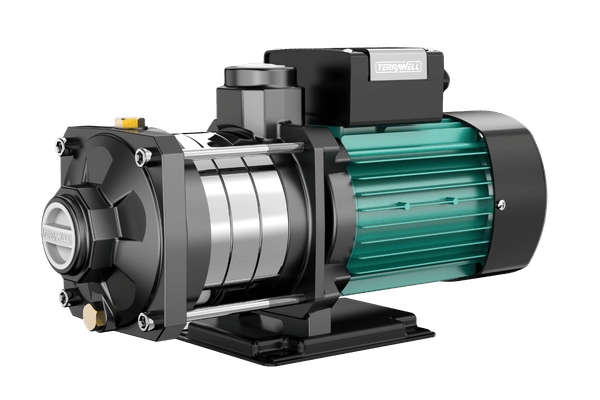

MHIL

Horizontal Multistage Pump

HVAC

Construction sites/factories

Commercial buildings

Domestic Water Supply

MHIL is the economical variant of MHI with cast iron pump body and stainless steel internal hydraulic parts, suitable for hot water circulation scenarios where drinking water hygiene requirement is not mandatory, with medium temperature range from -15℃ to 90℃.

01 / 03

Working condition

Medium temperature

-15°C ~ +90°C

Ambient temperature

≤40°C

Max working pressure

1.0 MPa

Proetction

IP 55

Pump

S.S. impellers
S.S.middle section
Multistage impellers
Low noise:40~65dB

Motor

Single Phase: 220V/50Hz

Three Phase: 380V/50Hz

Motors of other voltages are available upon request.

Single phase with thermal protector

Insulation Class:F

Product Parameters

MODEL	POWER		MAX.HEAD (m)	RATED.HEAD (m)	RATED .HEAD(m)	RATED.FLOW (L/min)	SPEED rpm	INLET OUTLET
MODEL	(kW)	(HP)	MAX.HEAD (m)	RATED.HEAD (m)	RATED .HEAD(m)	RATED.FLOW (L/min)	SPEED rpm	INLET OUTLET
MHIL-T 202	0.37	0.5	22	20	85	35	2900	1"x1"
MHIL-T 203	0.55	0.75	33	30	85	35	2900	1"x1"
MHIL-T 204	0.55	0.75	45	38	85	35	2900	1"x1"
MHIL-T 205	0.75	1	54	47	85	35	2900	1"x1"
MHIL-T 206	1.1	1.5	69	60	85	35	2900	1"x1"
MHIL-T 402	0.37	0.5	23	18	135	70	2900	1.25"x1"
MHIL-T 403	0.55	0.75	33	27	135	70	2900	1.25"x1"
MHIL-T 404	0.75	1	42	38	135	70	2900	1.25"x1"
MHIL-T 405	1.1	1.5	57	46	135	70	2900	1.25"x1"
MHIL-T 406	1.5	2	68	55	135	70	2900	1.25"x1"
MHIL-T 802	0.75	1	23	17	200	135	2900	1.5"x1.25"
MHIL-T 803	1.1	1.5	36	24	200	135	2900	1.5"x1.25"
MHIL-T 804	1.5	2	48	35	200	135	2900	1.5"x1.25"
MHIL-T 805	1.85	2.5	59	47	200	135	2900	1.5"x1.25"
