Pump Well. Trust Swell111
GF

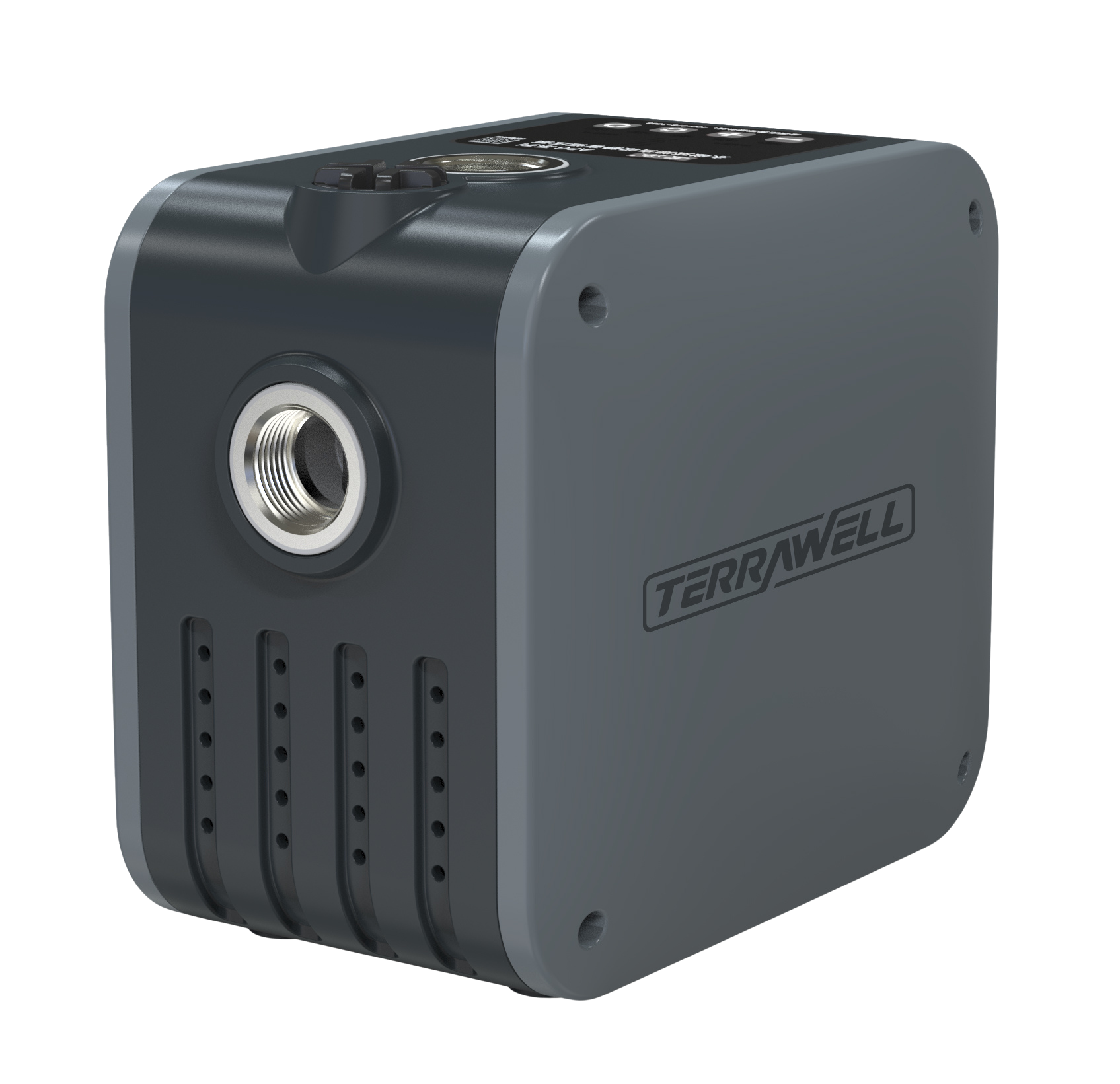

Permanent Magnet Variable Frequency Self-priming Pump
HVAC
Livestock farming
Construction sites/factories
Domestic Water Supply
GF permanent magnet variable frequency self-priming pump is with water-cooled canned magnet motor. It adopts lightweight corrosion-resistant PPE structure and intelligent frequency conversion control, featuring low power consumption and super low noise, ideal for household water boosting and small domestic water circulation applications.
01
/
03
Working condition
Medium temperature
0°C ~ +100°C
Ambient temperature
≤40°C
Relative humidity
＜90%
Solid particle size in medium
＜0.2mm
Medium specific gravity
＜1
Medium pH value
6.5~8.5
Proetction
IP X4
Pump
- PPE impeller
- Compact design ,space saving
- Better water cooling strcuture with lower noise
- Multi-stage impeller with higer head
- PM motor with higher effeciency lower consumption
- Multi mode with constant pressure
- Self-priming , no manual injection
- Noise:≤38dB
Motor
Permanent Magnet motor
Single phase :220V 50Hz/60Hz
Insulation Class: F
Product Parameters
| MODEL | POWER | MAX.HEAD (m) | MAX.FLOW (L/min) | MAX SUCTION (m) |
SPEED rpm |
INLET OUTLET |
|
| (kW) | (HP) | ||||||
| GF430 | 0.43 | 0.58 | 33 | 70 | 5 | 6000 | 1"x1" |
| GF630 | 0.63 | 0.85 | 43 | 90 | 5 | 6000 | 1"X1" |
