Pump Well. Trust Swell111
ZBP

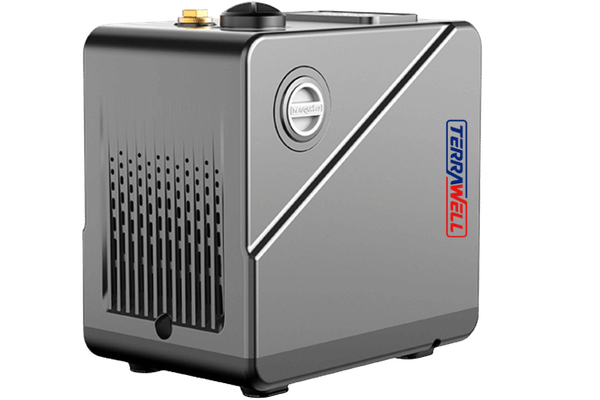

Permanent Magnet Variable Frequency Self-Priming Pump
HVAC
Livestock farming
Construction sites/factories
Domestic Water Supply
ZBP permanent magnet variable frequency self-priming pump, simply speaking is perfectly inserted magnet self-priming pump with a modern streamlined gorgeous square housing. The inside pump features anti-rust cast iron structure, intelligent constant pressure control, ideal for household water pressurization and domestic water supply projects.
01
/
03
Working condition
Medium temperature
0°C ~ +60°C
Ambient temperature
≤40°C
Relative humidity
＜90%
Solid particle size in medium
＜0.2mm
Medium specific gravity
＜1
Medium pH value
6.5~8.5
Proetction
IP X4
Pump
- Brass impeller
- Compact design ,space saving
- PM motor with higher effeciency lower consumption
- Multi mode with constant pressure
- Self-priming , no manual injection
- Noise:≤50dB
Motor
Permanent Magnet motor
Single phase :180~230V 50Hz/60Hz
Insulation Class: F
Product Parameters
| MODEL | POWER | MAX.HEAD (m) | MAX.FLOW (L/min) | MAX SUCTION (m) |
SPEED rpm |
INLET OUTLET |
|
| (kW) | (HP) | ||||||
| ZBP400 | 0.4 | 0.55 | 35 | 60 | 9 | 3800 | 1"*1" |
| ZBP800 | 0.8 | 1.1 | 46 | 60 | 9 | 3800 | 1"*1" |
