Pump Well. Trust Swell111

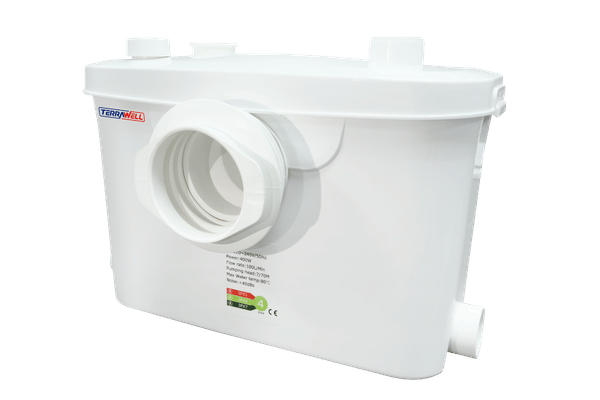

TST
Shower & Toilet Lifting Pump
(motor can be taken out)
Livestock farming
Farmland
Construction sites/factories
Domestic Water Supply
TST is designed exclusively for toilet, bathtubs, wash basins, and kitchen sinks, multi-port sewage lift pump delivers reliable anti-clog performance and full safety protection to solve drainage difficulties for renovated homes and basement spaces.
01
/
03
Working condition
Medium temperature
1~+65℃
Ambient temperature
≤0~40°C
Proetction
IP X7
Max.Solid Diameter
≤40mm
Pump
- S.S.grinding cutter
- Compact design, low noise, high-temperature resistant up to 65°C, low start water level
- Submersible installation
- Activated carbon deodorization
- Power switch with safety protection
- Motor can be taken off ,easy for maintaince
- Noise:30~50dB
Motor
Single phase : 100-240V/50Hz
Insulation Class: B
Product Parameters
| Model | TST400 | TST500 | TST 600-C1 | TST 600-C2 | TST 700-C1 | TST 700-C2 | TST 800-C1 | TST 800-C2 |
| Power (W) | 400 | 450W | 600W | 600W | 700W | 700W | 800W | 800W |
| Voltage | 100-240V/50-60Hz | 100-240V/50-60Hz | 100-240V/50-60Hz | 100-240V/50-60Hz | 100-240V/50-60Hz | 100-240V/50-60Hz | 220-240V/50-60Hz | 220-240V/50-60Hz |
| Max Vertical scharge | 7M | 7.5M | 7.5M | 7.5M | 10M | 10M | 10M | 10M |
| Max horizontal discharge | 70M | 75M | 75M | 75M | 100M | 100M | 100M | 100M |
| Outlet size | 23/28/32/44mm | 23/28/32/44 MM | 32/40/50MM | 32/40/50MM | 23/28/32/44 MM | 23/28/32/44 MM | 32/40/50MM | 32/40/50MM |
| Inlet size | 1×100mm+3×40mm | 1×100mm+3×40mm | 1*100MM+3*40-50MM | 1*100MM+3*40-50MM | 1×100mm+3×40mm | 1×100mm+3×40mm | 1*100MM+3*40-50MM | 1*100MM+3*40-50MM |
| Max liquid temperature | 1-80℃ | 1-90℃ | 1-65℃ | 1-65℃ | 1-90℃ | 1-90℃ | 1-65℃ | 1-65℃ |
| RPM R/Min | 2900R/Min | 2900R/Min | 2900R/Min | 2900R/Min | 2900R/Min | 2900R/Min | 2900R/Min | 2900R/Min |
| Noise dB(A)s | <35 | <40dB(A)s | 35-50 dB(A)s | 35-50 dB(A)s | <45dB(A)s | <45dB(A)s | 35-50 dB(A)s | 35-50 dB(A)s |
| Max Flow Rate (L/Min) | 115 | 115 | 150 | 150 | 160 | 160 | 200 | 200 |
| IP Rate | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 |
| MOQ (sets) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Carton size (mm) | 460x245x355 | 460x245x355 | 515*265*355 | 515*265*355 | 460x245x355 | 460x245x355 | 515*265*355 | 515*265*355 |
| NW / GW(kgs) | 6.5/7.5 | 6.5/7.5 | 5.8/7.2 | 5.8/7.2 | 6.5/7.5 | 6.5/7.5 | 5.9/7.3 | 5.9/7.3 |
| 1x20" (sets) | 700 | 700 | 600 | 600 | 700 | 700 | 600 | 600 |
| 1x40"HQ (sets) | 1700 | 1700 | 1500 | 1500 | 1680 | 1680 | 1500 | 1500 |
