Pump Well. Trust Swell111
TSO
Lifting Pump for Shower/Washroom
Livestock farming
Farmland
Construction sites/factories
Domestic Water Supply

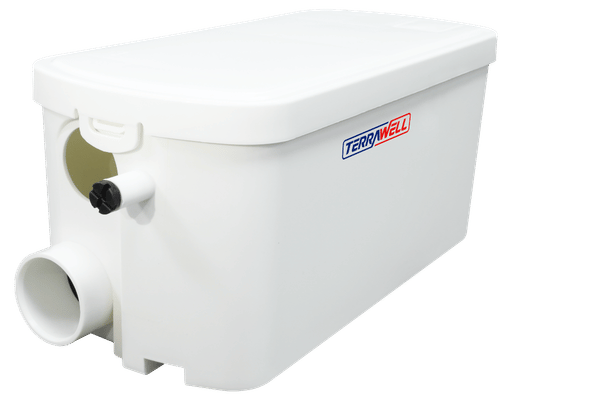

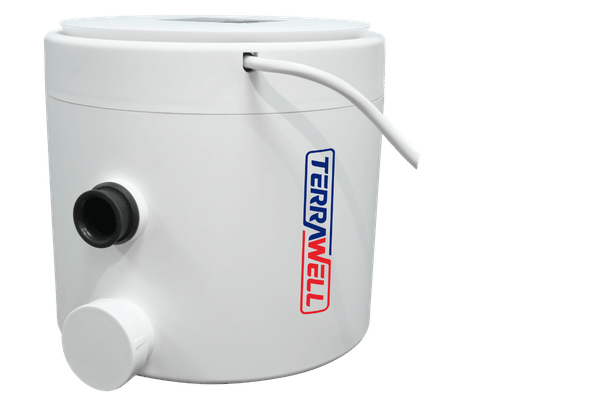

TSO is designed for bathtubs, wash basins and kitchen sinks (non-toilet application), this multi-port sewage lift pump delivers reliable anti-clog performance and full safety protection to solve drainage difficulties for renovated homes and basement spaces.
01
/
03
Working condition
Medium temperature
1~+95℃
Ambient temperature
≤0~40°C
Proetction
IP X7
Max.Solid Diameter
≤40mm
Pump
- Plastic impeller
- Compact design, low noise, high-temperature resistant up to 95°C, low start water level
- Power switch with safety protection
- Noise:35~65dB
Motor
Single phase : 100-240V/50Hz
Insulation Class: B
Product Parameters
| Model | TSO 250 | TSO 350A PRO | TSO 350B PRO | TSO 500 PRO | TSO 600 PRO | TSO 800 PRO |
| Power (W) | 250 | 350 | 350 | 450 | 600 | 800 |
| Voltage | 220~240V/50Hz | 100~240V/50~60Hz | 100~240V/50~60Hz | 100~240V/50~60Hz | 100~240V/50~60Hz | 100~240V/50~60Hz |
| Max Vertical scharge | 8 | 8 | 8 | 7.5 | 7.5 | 10 |
| Max horizontal discharge | 80 | 80 | 80 | 75 | 75 | 100 |
| Outlet size (mm) | 23/28 | 23/28mm | 23/28mm | 23/28/32/44 | 32/40/50 | 32/40/50mm |
| Inlet size | 2x40mm | 3×40~50mm | 2×40~50mm | 3x40mm | 3×40~50mm | 3×40~50mm |
| Max liquid temperature | 95°C | 1~65℃ | 1~65℃ | 1~90℃ | 1~65℃ | 1~65℃ |
| RPM R/Min | 2800 | 2800 | 2800 | 2800 | 2800 | 2800 |
| Noise dB(A)s | <35 | <35dB(A)s | <35dB(A)s | <40 | <50 | <50 |
| Max Flow Rate (L/Min) | 100 | 120L/Min | 120 | 115 | 150 | 20 |
| IP Rate | IPX7 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 |
| MOQ (sets) | 100 | 100 | 100 | 100 | 100 | 100 |
| 1x20" (sets) | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 |
| 1x40"HQ (sets) | 3400 | 3400 | 3400 | 3400 | 3400 | 3400 |
| Switch: | Mic switch (Float Switch) | Manual swith | Manual swith | Manual swith | Manual swith | Manual swith |
| Sewage height on (cm) | 6.5 | 8 | 8 | 8 | 9.5 | 9.5 |
Leave your message
