Pump Well. Trust Swell111

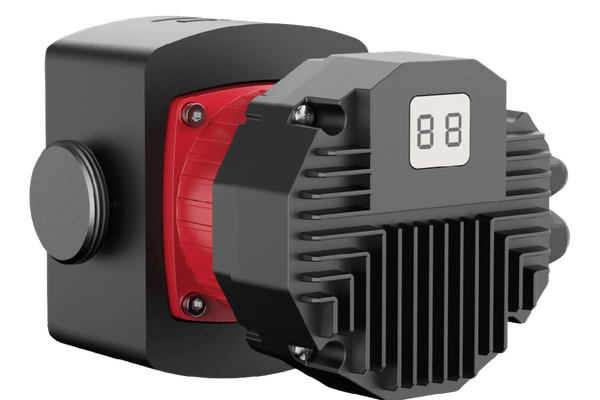

GPA-B
Circulator with Permanet Magnet Motor
HVAC
Construction sites/factories
Domestic Water Supply
GPA-B energy-saving circulation pump adopts permanent magnet motor with compact, leakage-free and ultra-quiet design. Dedicated HVAC circulation pump with anti-condensation design and adaptive variable frequency technology.Multiple specifications optional for various heating circulation systems.
01
/
03
Working Condition
Medium temperature
2~+95℃
Ambient temperature
≤40°C
Max working pressure
0.8 MPa
Proetction
IP 44
Pump
- Energy saving,
- Leak-free, long service life, low noise
- Power display, PWM control, multi-speed integrated
- Suitable for hot water circulation;
- Multi-protection
Motor
Permanet Magnet Motor
Single Phase: 220-240v/50Hz/60Hz
Insulation Class: F
Minimum Inlet Pressure:0.2 bar
Max Working Pressure:0.8 MPaProtection Rating:IP44Insulation Class:F
Fluid Temperature:+2℃~95℃
Fluid pH Value:6.5~8.5
Product Parameters
| Model | Power (w) |
Rated Flow (m³/h) |
Rated Head (m) |
Max Flow (m³/h) | Max Head (m) | Max Speed (r/min) |
Inlet/Outlet (mm) |
| GPA-B25-14-180 | 180 | 2.5 | 10 | 7 | 14 | 4300 | 25 |
| GPA-B25-16-220 | 220 | 3 | 11 | 7.5 | 16 | 4600 | 25 |
| GPA-B32-10-180 | 180 | 3.5 | 8 | 9.5 | 10 | 4500 | 32 |
| GPA-B32-12-220 | 220 | 4 | 9 | 10 | 12 | 4800 | 32 |
| GPA-B32-16-280 | 280 | 5 | 10 | 11 | 16 | 5600 | 32 |
| GPA-B32-18-360 | 360 | 6 | 11 | 12 | 18 | 6000 | 32 |
