Pump Well. Trust Swell111
YCm

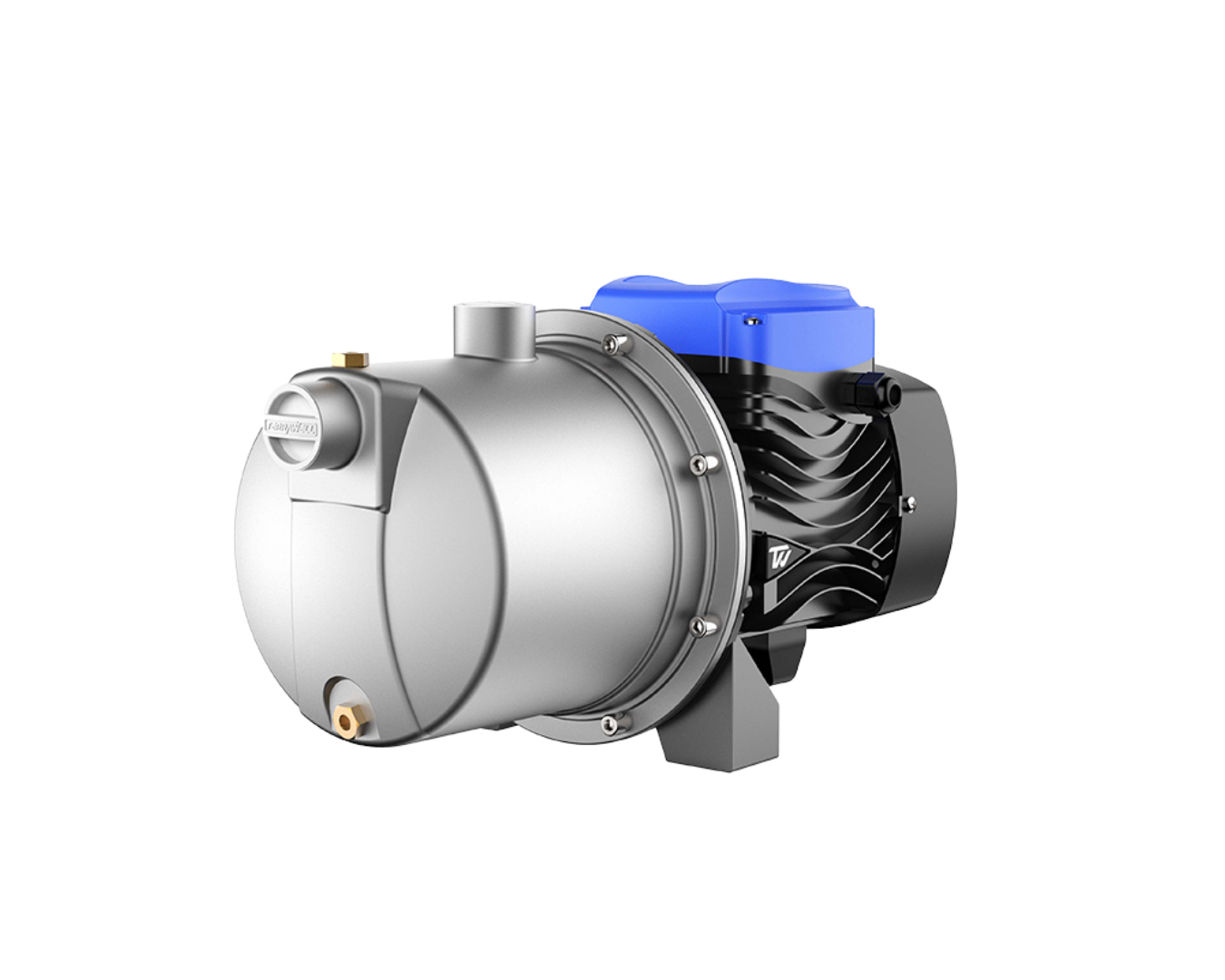

Stainless Steel Multistage JET Pump
Domestic Water Supply
Water treatment
Commercial buildings
HVAC
YCm series stainless steel multistage pump features Italian sealing technology and AISI304 stainless steel wetted components, with 9m maximum suction lift and IPX4 single-phase copper motor, ideal for household water pressurization, small industrial circulation and clean water delivery.
01
/
03
Working Condition
Medium temperature
-10~+60°C
Ambient temperature
≤50°C
Protection
IPX4
Product Fetaures
- PPO three-stage impellers
- S.S. pump body
- Low noise
Motor
Motor
Single Phase: 220~240V/50Hz
Three Phase: 380~415V/50Hz
Motors of other voltages are available upon request.
Single phase with thermal protector
Insulation Class: F
Product Parameters
| MODEL | POWER | MAX.HEAD (m) | MAX.FLOW (L/min) | MAX SUCTION (m) |
SPEED rpm | INLET OUTLET |
|
| (kW) | (HP) | ||||||
| 2YCm90 | 0.37 | 0.5 | 20 | 95 | 6 | 2900 | 1"*1" |
| 3YCm90 | 0.55 | 0.75 | 32 | 95 | 6 | 2900 | 1"*1" |
| 3YCm110 | 0.75 | 1 | 34 | 100 | 6 | 2900 | 1"*1" |
| 4YCm110 | 1.1 | 1.5 | 46 | 100 | 6 | 2900 | 1"*1" |
| 5YCm110 | 1.5 | 2 | 57 | 100 | 6 | 2900 | 1"*1" |
