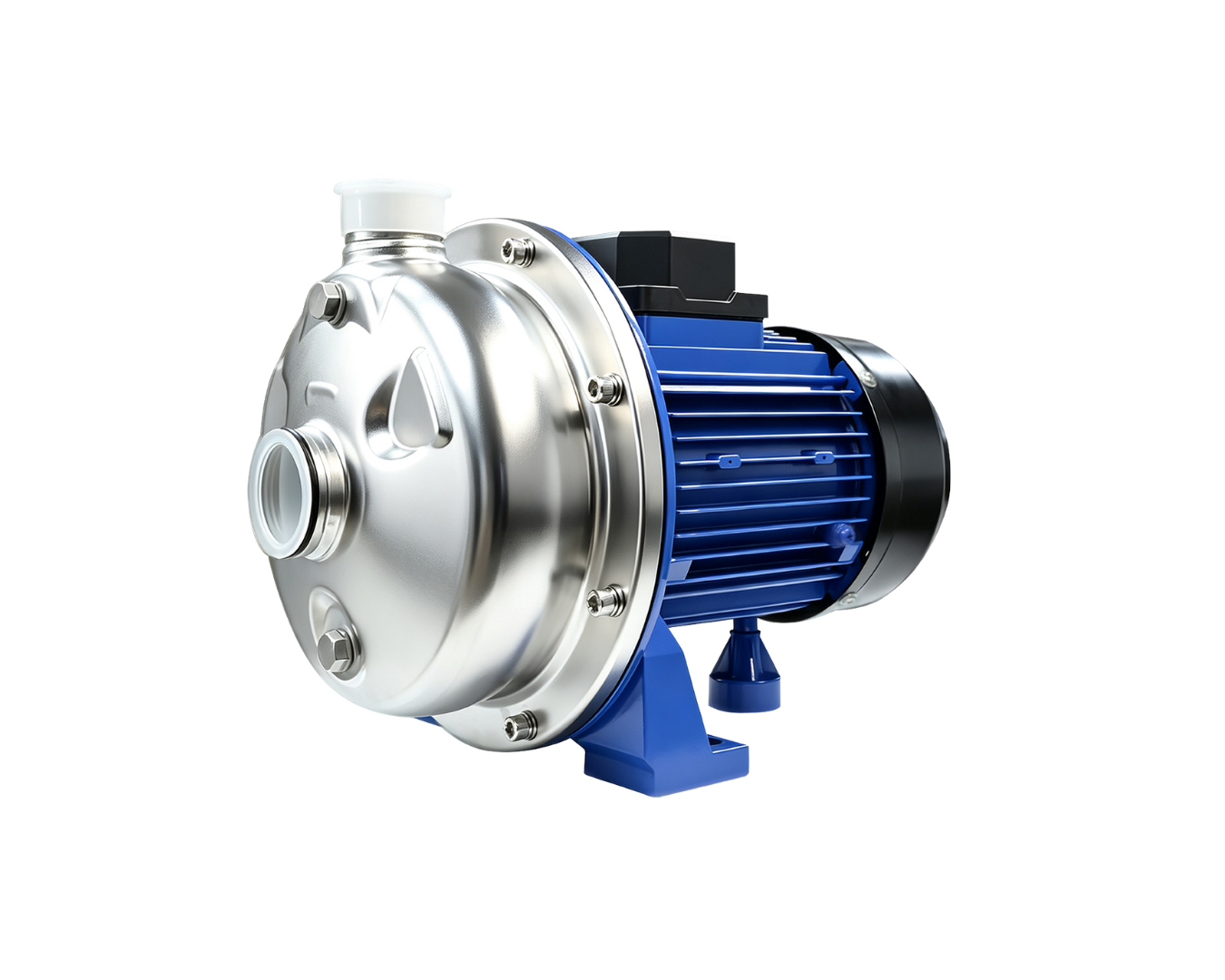

TLC
Stainless Steel Centrifugal Pump
Domestic Water Supply
Water treatment
Commercial buildings
Farmland
Greenhouses and orchards
HVAC
TLC series horizontal stainless‑steel centrifugal pumps adopt SUS304 wetted components for clean water transfer. Built‑in thermal protection, IP55 and Class‑F insulation guarantee dependable continuous operation. Widely used for water boosting, irrigation, water‑treatment and circulating systems.
01
/
03
Working Condition
Medium temperature
Normal Type: -20~+70°C
High Temperature Type: -20~+104°C
Ambient temperature
≤50°C
Protection
IP55
Product Features
- S.S. pump body
- S.S. impeller
- Anti-corrision and sanitary
Motor
Motor
Single Phase: 220~240V/50Hz
Three Phase: 380~415V/50Hz
Motors of other voltages are available upon request.
Single phase with thermal protector
Insulation Class: F
Product Parameters
| Model | Power(P2)kW | (Amps) | Rated head (m) | Rated flow (m³/h) | DNA | DNM | |
| 220V/50Hz | 380V/50Hz | ||||||
| TLC50/025(T) | 0.25 | 2.0 | 0.7 | 9 | 3 | G11/4 | G1 |
| TLC50/037(T) | 0.37 | 2.4 | 1.0 | 11 | 3 | G11/4 | G1 |
| TLC70/037(T) | 0.37 | 2.4 | 1.0 | 13 | 4.2 | G11/4 | G1 |
| TLC100/055(T) | 0.55 | 3.8 | 1.4 | 12 | 5 | G11/4 | G1 |
| Model | Power(P2)kW | (Amps) | Rated head (m) | Rated flow (m³/h) | Curve | DNA | |
| 220V/50Hz | 380V/50Hz | ||||||
| TLC70/055(T) | 0.55 | 3.8 | 1.4 | 14 | 4.2 | 1 | G11/4 |
| TLC70/075(T) | 0.75 | 5.2 | 1.8 | 19 | 4.2 | 3 | G11/4 |
| TLC70/100(T) | 1.0 | 6.2 | 2.4 | 22 | 4.2 | 4 | G11/4 |
| TLC120/075(T) | 0.75 | 5.2 | 1.8 | 14 | 7.2 | 2 | G11/4 |
| TLC120/110(T) | 1.1 | 7.0 | 2.6 | 17 | 7.2 | 5 | G11/4 |
| TLC120/150(T) | 1.5 | 9.2 | 3.5 | 22 | 7.2 | 6 | G11/4 |
| TLC120/185(T) | 1.85 | 13 | 4.1 | 25 | 7.2 | 7 | G11/4 |
| Model | Power(P2)kW | (Amps) | Rated head (m) | Rated flow (m³/h) | Curve | DNA | |
| 220V/50Hz | 380V/50Hz | ||||||
| TLC200/110(T) | 1.10 | 7.0 | 2.6 | 15 | 9.0 | 1 | G11/2 |
| TLC200/150(T) | 1.50 | 9.2 | 3.5 | 20 | 10.0 | 3 | G11/2 |
| TLC200/150T(T) | 1.50 | 9.2 | 3.5 | 20 | 10.0 | 3 | G11/2 |
| TLC200/185(T) | 1.85 | 13.0 | 4.1 | 21 | 12.0 | 4 | G11/2 |
| TLC200/185T(T) | 1.85 | 13.0 | 4.1 | 21 | 12.0 | 4 | G11/2 |
| TLC370/185(T) | 1.85 | 13.0 | 4.1 | 12 | 22.0 | 2 | G2 |
