TMS
Stainless Steel Centrifugal Pump
Domestic Water Supply
HVAC
Water treatment
Backyard fish tanks
Greenhouses and orchards
Livestock farming
Construction sites/factories

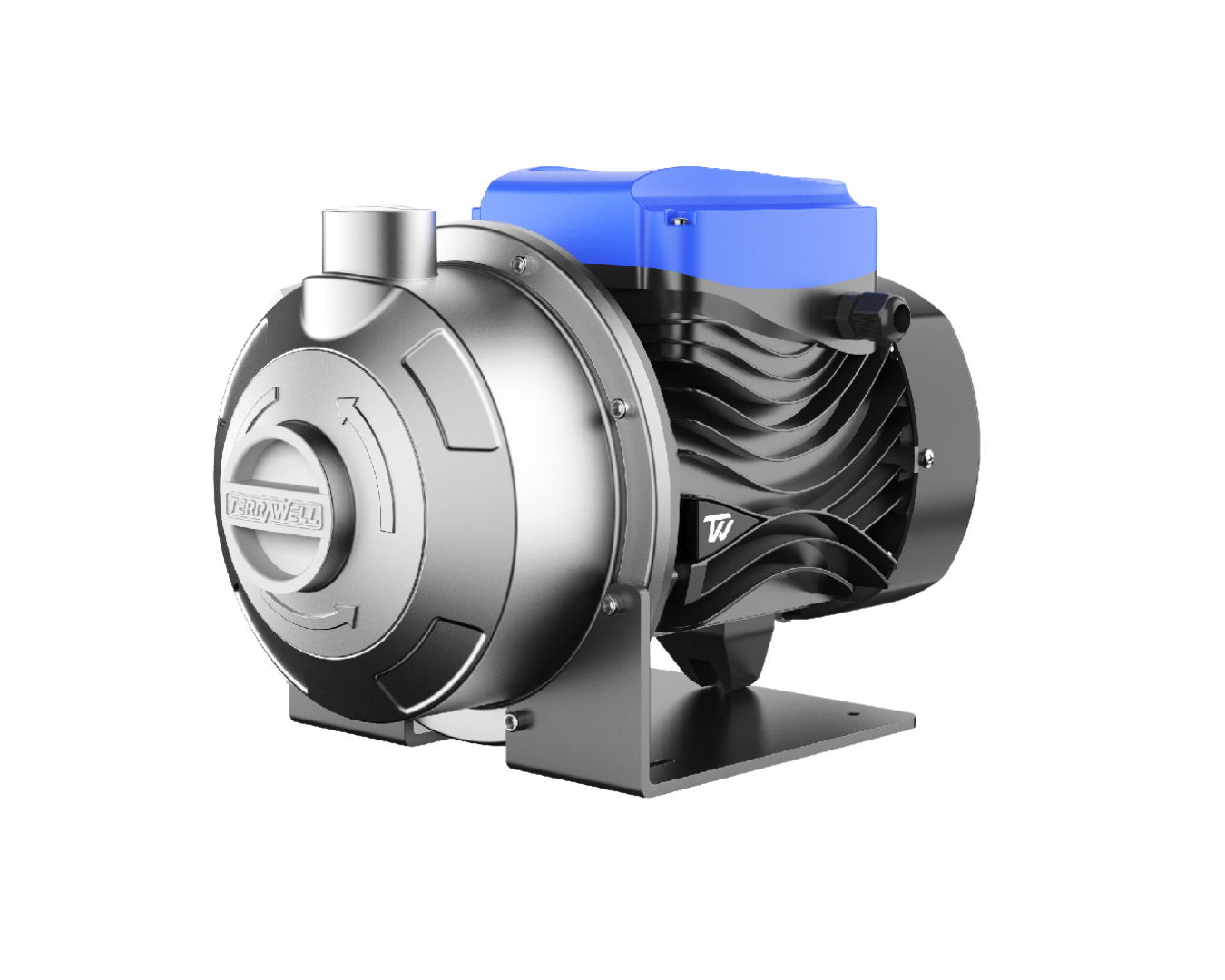

TMS stainless steel centrifugal pump adopts stainless steel pump body, impeller and AISI 304 shaft, matched with aluminum bracket. Equipped with full copper motor, thermal protector, F-class insulation and IP44 protection. It can continuously deliver clean water within -10℃~110℃, with single/three-phase and multi-voltage optional. Widely used in domestic water boosting, HVAC, irrigation and industrial liquid circulation.
01
/
03
Working Condition
Medium temperature
-10~+85°C
Ambient temperature
≤40°C
Protection
IP44
Product Features
- S.S. pump body
- S.S.impeller
Motor
Motor
Three Phase: 380V/50 Hz
Motors of other voltages are available upon request.
Insulation Class:F
Product Parameters
| MODEL | POWER | INLET/OUTLET | MAX.WORKING FLOW | MAX.WORKING HEAD | MAX SUCTION | DIM(LxWxH) | G.W | |
| KW | HP | (in) | (L/min) | (m) | (m) | (mm) | (kg) | |
| TMS-750A | 0.75 | 1 | 1.25"x1" | 150 | 25 | 8 | 360x240x260 | 12.25 |
| TMS-1100A | 1.1 | 1.5 | 1.25"x1" | 160 | 30 | 8 | 360x240x260 | 13 |
| TMS-1100B | 1.1 | 1.5 | 1.5"x1.25" | 280 | 22 | 8 | 430x240x280 | 16.5 |
| TMS-1500B | 1.5 | 2 | 1.5"x1.25" | 300 | 26 | 8 | 430x240x280 | 18.5 |
| TMS-2200B | 2.2 | 3 | 1.5"x1.25" | 335 | 33 | 8 | 430x240x280 | 20.5 |
| TMS-1100C | 1.1 | 5 | 2"x1.25" | 305 | 22 | 8 | 430x240x280 | 17 |
| TMS-1500C | 1.5 | 2 | 2"x1.25" | 335 | 24 | 8 | 430x240x280 | 19 |
| TMS-2200C | 2.2 | 3 | 2"x1.25" | 340 | 27 | 8 | 430x240x280 | 21 |
