Pump Well. Trust Swell111
FN
Submersible Sewage Pump
Domestic Water Supply
Backyard fish tanks
Commercial buildings
Construction sites/factories
Farmland

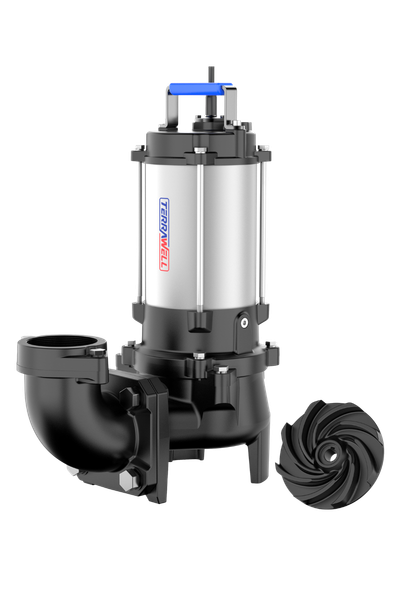

FN stainless steel submersible sewage pump with wide-flow anti-clog vortex impeller, IPX8 waterproof protection and double-end mechanical seal, is ideal for wastewater collection, lifting and drainage in residential, commercial and public facility sewage systems.
01
/
03
Working Condition
Medium temperature
0~+40°C
Ambient temperature
≤40°C
Max. sand content
0.1%
PH Value
6.5~8.5
Protection
IP X8
Max. immersion depth
≤35mm
Pump
- Cast iron pump body
- S.S. motor housing
- Semi-open cast iron impeller
- High-temperature resistant bearings
- Pure copper motor windings
- Double end mechanical seal
Motor
Single Phase: 220~240V/50Hz
Three Phase: 380~415V/50Hz
With thermal protector
Insulation Class: F
Product Parameters
| MODEL | POWER | RATED. FLOW (m³/h) |
MAX. FLOW (m³/h) |
RATED. HEAD (m) |
MAX. HEAD (m) |
SPEED (rpm) |
INLET OUTLET |
|
| (kW) | (HP) | |||||||
| F-21U | 0.75 | 1 | 12 | 21 | 8 | 14 | 2900 | 50 |
| F-31U | 0.75 | 1 | 18 | 33 | 7 | 13 | 2900 | 80 |
| FN-22U | 1.5 | 2 | 12 | 26 | 14 | 20 | 2900 | 50 |
| FN-32U | 1.5 | 2 | 24 | 43 | 9 | 15 | 2900 | 80 |
| FN-33U | 2.2 | 3 | 24 | 50 | 13 | 18 | 2900 | 80 |
| FN-35U | 3.7 | 5 | 30 | 56 | 17 | 22 | 2900 | 80 |
| F-21P | 0.75 | 1 | 12 | 24 | 9 | 15 | 2900 | 50 |
| FN-32P | 1.5 | 2 | 36 | 57 | 9 | 16 | 2900 | 80 |
| FN-33P | 2.2 | 3 | 36 | 66 | 12 | 21 | 2900 | 80 |
| FN-35P | 3.7 | 5 | 36 | 76 | 19 | 26 | 2900 | 80 |
