WQ Submersible Sewage Pump

Pump Well. Trust Swell111

Submersible Sewage Pump

Backyard fish tanks

Drainage and sewage

Construction sites/factories

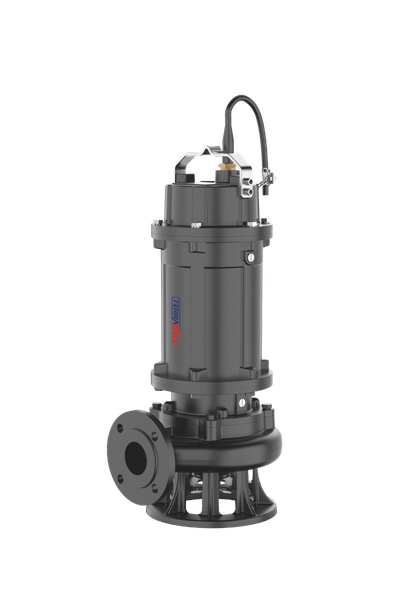

WQ cast iron submersible sewage pump equipped with IPX8 waterproof grade and double-end mechanical seal adopts anti-clog wide-flow impeller, available in multiple power and caliber options, suitable for municipal, residential, industrial and construction wastewater lifting and drainage.

01 / 03

Working Condition

Medium temperature

0~+40°C

Ambient temperature

≤40°C

Max. sand content

≦55mm

PH Value

6.5~8.5

Protection

IP X8

Max. immersion depth

Pump

Cast iron pump body
Closed cast iron impeller
With oil-filled motor
High-temperature resistant bearings
Pure copper motor windings
Double end mechanical seal

Motor

Single Phase: 220~240V/50Hz

Three Phase: 380~415V/50Hz

Motors of other voltages are available upon request.

With thermal protector

Insulation Class: F

Product Parameters

MODEL	POWER		RATED. FLOW (m³/h)	MAX. FLOW (m³/h)	RATED. HEAD (m)	MAX. HEAD (m)	SPEED (rpm)	INLET OUTLET
MODEL	(kW)	(HP)	RATED. FLOW (m³/h)	MAX. FLOW (m³/h)	RATED. HEAD (m)	MAX. HEAD (m)	SPEED (rpm)	INLET OUTLET
50WQ10-10-0.75	0.75	1	10	27	10	12	2900	50
50WQ10-15-1.1	1.1	1.5	10	27	15	17	2900	50
65WQ15-10-1.1	1.5	2	15	27	10	17	2900	65
50WQ15-15-1.5	1.5	2	15	29	15	18	2900	50
65WQ25-10-1.5	1.5	2	25	29	10	18	2900	65
50WQ15-20-2.2	2.2	3	15	29	20	22	2900	50
65WQ20-18-2.2	2.2	3	20	34	18	24	2900	65
80WQ40-13-2.2	2.2	3	40	60	13	17	2900	80
100WQ50-12-2.2	2.2	3	50	70	12	17	2900	100
50WQ15-30-3	3	4	15	40	30	32	2900	50
65WQ25-24-3	3	4	25	41	24	32	2900	65
80WQ50-13-3	3	4	50	67	13	19	2900	80
100WQ60-9-3	3	4	60	80	9	19	2900	100
50WQ15-35-4	4	5.5	15	35	35	41	2900	50
65WQ25-28-4	4	5.5	25	35	28	42	2900	65
80WQ40-15-4	4	5.5	40	77	15	23	2900	80
100WQ60-13-4	4	5.5	60	95	13	23	2900	100
50WQ15-45-5.5	5.5	7.5	15	50	45	48	2900	50
65WQ25-38-5.5	5.5	7.5	25	52	38	46	2900	65
80WQ30-30-5.5	5.5	7.5	30	55	30	41	2900	80
100WQ65-18-5.5	5.5	7.5	65	93	18	27	2900	100
80WQ50-30-7.5	7.5	10	50	110	30	34	2900	80
100WQ80-20-7.5	7.5	10	80	134	20	26	2900	100
150WQ100-10-7.5	7.5	10	100	148	10	19	2900	150
80WQ40-40-11	11	15	40	115	40	44	2900	80
100WQ60-30-11	11	15	60	110	30	42	2900	100
150WQ100-20-11	11	15	100	160	20	34	2900	150
200WQ200-9-11	11	15	200	230	9	23	2900	200
80WQ45-52-15	15	20	45	115	52	55	2900	80
100WQ60-40-15	15	20	60	115	40	49	2900	100
150WQ100-30-15	15	20	100	170	30	41	2900	150
200WQ220-12-15	15	20	220	230	12	30	2900	200
80WQ60-45-18.5	18.5	25	60	110	45	54	2900	80
100WQ80-40-18.5	18.5	25	80	120	40	55	2900	100
150WQ100-35-18.5	18.5	25	100	170	35	45	2900	150
200WQ180-18-18.5	18.5	26	180	230	18	35	2900	200
80WQ60-50-22	22	30	60	110	50	59	2900	80
100WQ80-45-22	22	30	80	120	45	59	2900	100
150WQ100-40-22	22	30	100	170	40	50	2900	150
200WO200-20-22	22	30	200	240	20	38	2900	200
