GNWQ/S

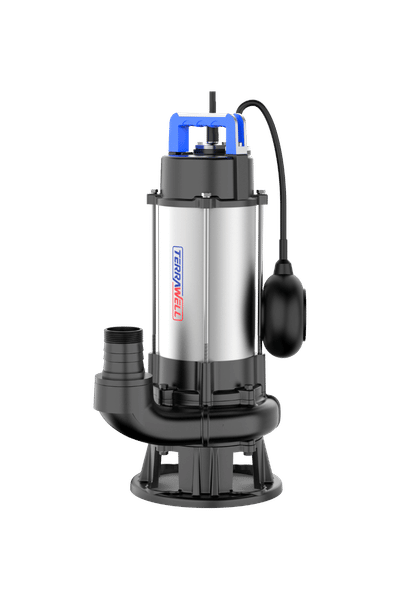

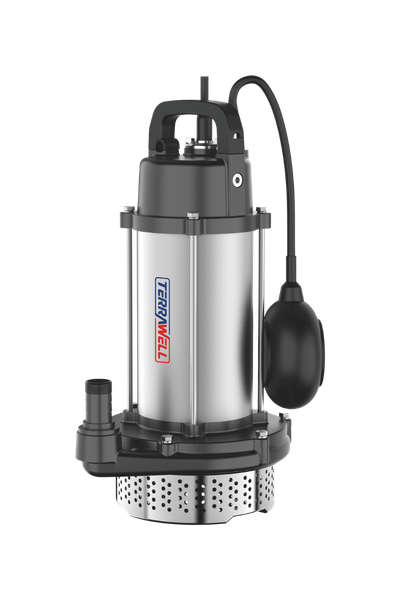

Stainless Steel Submersible Sewage Pump(Cutter)
Drainage and sewage
Commercial buildings
Livestock farming
GNWQ/S stainless steel cutter submersible sewage pump features built-in cutting system and IPX8 waterproof performance, ideal for anti-clog wastewater drainage in residential, commercial and light industrial scenarios.
01
/
03
Working Condition
Medium temperature
0~+40°C
Ambient temperature
≤40°C
Max. sand content
≦15mm
PH Value
6.5~8.5
Protection
IP X8
Max. immersion depth
5m
Pump
- Cast iron pump body
- Closed cast iron impeller
- With oil-filled motor
- High-temperature resistant bearings
- Pure copper motor windings
- Double end mechanical seal
Motor
Single Phase: 220~240V/50Hz
Three Phase: 380~415V/50Hz
Motors of other voltages are available upon request.
With thermal protector
Insulation Class: F
Product Parameters
| MODEL | POWER | RATED. FLOW (m³/h) |
MAX. FLOW (m³/h) |
RATED. HEAD (m) |
MAX. HEAD (m) |
SPEED (rpm) |
INLET OUTLET |
|
| (kW) | (HP) | |||||||
| 50GNWQ10-10-0.75S | 0.75 | 1 | 10 | 20 | 10 | 13 | 2900 | 50 |
| 50GNWQ10-12-1.1S | 1.1 | 1.5 | 10 | 25 | 12 | 16 | 2900 | 50 |
| 50GNWQ15-15-1.5S | 1.5 | 2 | 15 | 29 | 15 | 19 | 2900 | 50 |
| 65GNWQ25-10-1.5S | 1.5 | 2 | 25 | 33 | 10 | 19 | 2900 | 65 |
| 80GNWQ30-10-2.2S | 2.2 | 3 | 30 | 40 | 10 | 20 | 2900 | 80 |
