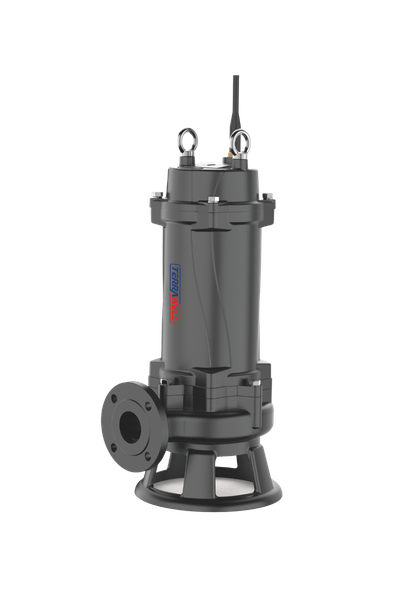

GNWQ
Submersible Sewage Pump(Cutter）
Drainage and sewage
Commercial buildings
Livestock farming
GNWQ series cast iron cutter submersible sewage pump features an integrated anti-clog cutting system, IPX8 high waterproof rating and double-end mechanical seals, which is a reliable choice for residential, commercial and municipal wastewater drainage.
01
/
03
Working Condition
Medium temperature
0~+40°C
Ambient temperature
≤40°C
Max. sand content
≦45mm
PH Value
6.5~8.5
Protection
IP X8
Max. immersion depth
5m
Pump
- Cast iron pump body & motor housing
- Semi-opend alloy impeller
- With Cr13 cutter
- High-temperature resistant bearings
- Pure copper motor windings
- Double end mechanical seal
Motor
Single Phase: 220~240V/50Hz
Three Phase: 380~415V/50Hz
Motors of other voltages are available upon request.
with thermal protector
Insulation Class: F
Product Parameters
| MODEL | POWER | RATED. FLOW (m³/h) |
MAX. FLOW (m³/h) |
RATED. HEAD (m) |
MAX. HEAD (m) |
SPEED (rpm) |
INLET OUTLET |
|
| (kW) | (HP) | |||||||
| 50GNWQ10-10-0.75 | 0.75 | 1 | 10 | 16 | 10 | 13 | 2900 | 50 |
| 50GNWQ12-10-1.1 | 1.1 | 1.5 | 12 | 24 | 10 | 12 | 2900 | 50 |
| 50GNWQ15-10-1.5 | 1.5 | 2 | 15 | 24 | 10 | 15 | 2900 | 50 |
| 65GNWQ25-10-1.5 | 1.5 | 2 | 25 | 30 | 10 | 15 | 2900 | 65 |
| 50GNWQ15-18-2.2 | 2.2 | 3 | 15 | 34 | 18 | 22 | 2900 | 50 |
| 65GNWQ25-15-2.2 | 2.2 | 3 | 25 | 33 | 15 | 21 | 2900 | 65 |
| 80GNWQ30-10-2.2 | 2.2 | 3 | 30 | 51 | 10 | 22 | 2900 | 80 |
| 50GNWQ15-20-3 | 3 | 4 | 15 | 38 | 20 | 24 | 2900 | 50 |
| 65GNWQ30-17-3 | 3 | 4 | 30 | 39 | 17 | 23 | 2900 | 65 |
| 80GNWQ35-14-3 | 3 | 4 | 35 | 61 | 14 | 23 | 2900 | 80 |
| 65GNWQ45-17-4 | 4 | 5.5 | 45 | 50 | 17 | 29 | 2900 | 65 |
| 80GNWQ60-13-4 | 4 | 5.5 | 60 | 75 | 13 | 29 | 2900 | 80 |
| 100GNWQ80-10-4 | 4 | 5.5 | 80 | 91 | 10 | 29 | 2900 | 100 |
| 80GNWQ65-14-5.5 | 5.5 | 7.5 | 60 | 86 | 14 | 31 | 2900 | 80 |
| 100GNWQ85-15-5.5 | 5.5 | 7.5 | 85 | 105 | 15 | 31 | 2900 | 100 |
| 80GNWQ85-19-7.5 | 7.5 | 10 | 85 | 105 | 19 | 38 | 2900 | 80 |
| 100GNWQ100-15-7.5 | 7.5 | 10 | 100 | 129 | 15 | 35 | 2900 | 100 |
| 80GNWQ40-40-11 | 11 | 15 | 40 | 115 | 40 | 42 | 2900 | 80 |
| 100GNWQ60-30-11 | 11 | 15 | 60 | 135 | 30 | 36 | 2900 | 100 |
| 150GNWQ100-20-11 | 11 | 15 | 100 | 190 | 20 | 36 | 2900 | 150 |
| 80GNWQ45-52-15 | 15 | 20 | 45 | 130 | 52 | 53 | 2900 | 80 |
| 100GNWQ60-40-15 | 15 | 20 | 60 | 160 | 40 | 45 | 2900 | 100 |
| 150GNWQ100-30-15 | 15 | 20 | 100 | 220 | 30 | 44 | 2900 | 150 |
