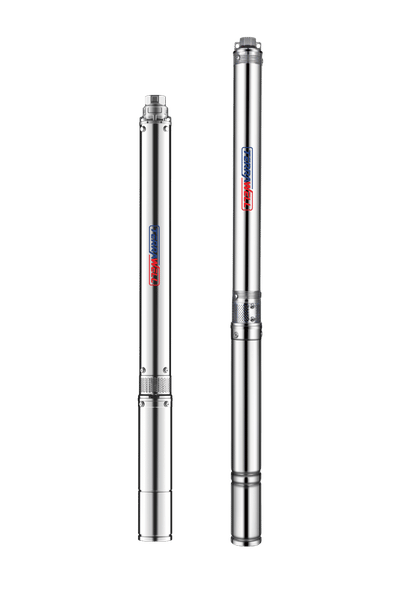

XY90
Deep-well Pump
Construction sites/factories
Farmland
Greenhouses and orchards
Livestock farming
XY90 series stainless steel deep well submersible pump is equipped with IP68 waterproof rewindable F-class motor, delivering stable high-lift water supply, ideal for domestic well water supply, agricultural irrigation, mountain water intake and industrial clean water transportation.
01
/
03
Working Condition
Medium Temperature
0~+35°C
Ambient Temperature
≤40°C
Protection
IP68
Max. immersion depth
120m
Pump
- S.S. pump body
- S.S. outlet, optional cast iron outlet
- With oil-filled motor
- Plastic multi-stage impeller
- Separeted motor structure
- Oil filled motor
Motor
Motor conforms to US NEMA standards
Single Phase: 220~240V/50Hz/60Hz
Three Phase: 380~415V/50Hz/60Hz
Motors of other voltages are available upon request.
Optional with thermal protector
Insulation Class: F
Product Parameters
| MODEL | VOLTAGE | POWER | OUTLET | DIAMETER | FLOW | 0 | 1 | 2 | 3 | 4 | 5 | 6 | PUMP BODY | MOTOR | TOTAL | |||||
| (V) | (kW) | (mm) | (mm) | (mm) | (mm) | |||||||||||||||
| XY90QJD2-125/20-1.5(S) | 220/380 | 1.5 | 1.0” | 100 | HEAD (mm) | 135 | 130 | 125 | 108 | 90 | 67 | 39 | 812 | 507 | 1319 | |||||
| XY90QJD2-140/23-1.8(S) | 220/380 | 1.8 | 1.0" | 100 | 150 | 143 | 140 | 121 | 101 | 77 | 45 | 929 | 532 | 1461 | ||||||
| XY90QJD2-160/26-2.2(S) | 220/380 | 2.2 | 1.0” | 100 | 200 | 181 | 160 | 138 | 112 | 85 | 51 | 1010 | 567 | 1577 | ||||||
| XY90QJD2-235/36-3.0(S) | 220/380 | 3.0 | 1.0" | 100 | 260 | 258 | 235 | 195 | 128 | 50 | / | 1315 | 625 | 1940 | ||||||
| XY90QJ2-310/48-4.0(S) | 380 | 4.0 | 1.0" | 100 | 345 | 342 | 310 | 250 | 170 | 65 | / | 1796 | 700 | 2496 | ||||||
| XY90QJ2-400/62-5.5(S) | 380 | 5.5 | 1.0" | 100 | 450 | 445 | 400 | 333 | 223 | 85 | / | 2172 | 775 | 2947 | ||||||
| XY90QJ2-505/78-7.5(S) | 380 | 7.5 | 1.0" | 100 | 560 | 535 | 505 | 416 | 282 | 107 | / | 2676 | 850 | 3526 | ||||||
| MODEL | VOLTAGE | POWER | OUTLET | DIAMETER | FLOW | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | PUMP BODY | MOTOR | TOTAL | ||
| (V) | (kW) | (mm) | (mm) | (mm) | (mm) | |||||||||||||||
| XY90QJD4-77/16-1.5(S) | 220/380 | 1.5 | 1.5" | 100 | HEAD (mm) | 95 | 91 | 86 | 82 | 77 | 65 | 55 | 45 | 31 | 16 | 778 | 507 | 1285 | ||
| XY90QJD4-85/18-1.8(S) | 220/380 | 1.8 | 1.5" | 100 | 107 | 103 | 97 | 92 | 85 | 73 | 62 | 50 | 35 | 18 | 841 | 532 | 1373 | |||
| XY90QJD4-100/20-2.2(S) | 220/380 | 2.2 | 1.5" | 100 | 130 | 117 | 113 | 108 | 100 | 82 | 74 | 56 | 39 | 20 | 904 | 567 | 1471 | |||
| XY90QJD4-140/26-3.0(S) | 220/380 | 3.0 | 1.5" | 100 | 165 | 158 | 150 | 145 | 140 | 129 | 115 | 95 | 76 | 44 | 1129 | 625 | 1754 | |||
| XY90QJ4-180/35-4.0(S) | 380 | 4.0 | 1.5" | 100 | 215 | 207 | 199 | 189 | 180 | 169 | 150 | 121 | 92 | 52 | 1449 | 700 | 2149 | |||
| XY90QJ4-230/44-5.5(S) | 380 | 5.5 | 1.5" | 100 | 275 | 263 | 251 | 240 | 230 | 213 | 190 | 156 | 123 | 75 | 1818 | 775 | 2593 | |||
| XY90QJ4-280/54-7.5(S) | 380 | 7.5 | 1.5" | 100 | 335 | 323 | 311 | 295 | 280 | 265 | 237 | 193 | 150 | 88 | 2206 | 850 | 3056 | |||
| MODEL | VOLTAGE | POWER | OUTLET | DIAMETER | FLOW | 0 | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | PUMP BODY | MOTOR | TOTAL | |||
| (V) | (kW) | (mm) | (mm) | (mm) | (mm) | |||||||||||||||
| XY90QJD6-44/8-1.5(S) | 220/380 | 1.5 | 1.5" | 100 | HEAD (mm) | 50 | 46 | 45 | 44 | 38 | 31 | 25 | 16 | 6 | 537 | 507 | 1044 | |||
| XY90QJD6-55/10-1.8(S) | 220/380 | 1.8 | 1.5" | 100 | 63 | 58 | 56 | 55 | 53 | 50 | 43 | 30 | 12 | 612 | 532 | 1144 | ||||
| XY90QJD6-65/12-2.2(5) | 220/380 | 2.2 | 1.5" | 100 | 75 | 69 | 67 | 65 | 63 | 58 | 48 | 30 | 12 | 723 | 567 | 1290 | ||||
| XY90QJD6-82/16-3.0(S) | 220/380 | 3.0 | 1.5" | 100 | 100 | 92 | 90 | 82 | 75 | 60 | 49 | 33 | 15 | 873 | 625 | 1498 | ||||
| XY90QJ6-108/21-4.0(S) | 380 | 4.0 | 1.5" | 100 | 130 | 121 | 116 | 108 | 100 | 81 | 65 | 44 | 20 | 1059 | 700 | 1759 | ||||
| XY90QJ6-149/29-5.5(S) | 380 | 5.5 | 1.5" | 100 | 180 | 168 | 160 | 149 | 135 | 112 | 91 | 62 | 30 | 1386 | 775 | 2161 | ||||
| XY90QJ6-200/39-7.5(S) | 380 | 7.5 | 1.5" | 100 | 240 | 225 | 210 | 200 | 180 | 151 | 122 | 78 | 33 | 1892 | 850 | 2742 | ||||
| MODEL | VOLTAGE | POWER | OUTLET | DIAMETER | FLOW | 0 | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | PUMP BODY | MOTOR | TOTAL | |||
| (V) | (kW) | (mm) | (mm) | (mm) | (mm) | |||||||||||||||
| XY90QJD8-38/8-1.5(S) | 220/380 | 1.5 | 2.0" | 100 | HEAD (mm) | 50 | 46 | 45 | 44 | 38 | 31 | 25 | 16 | 6 | 536 | 507 | 1043 | |||
| XY90QJD8-53/10-1.8(5) | 220/380 | 1.8 | 2.0" | 100 | 63 | 58 | 56 | 55 | 53 | 50 | 43 | 30 | 12 | 611 | 532 | 1143 | ||||
| XY90QJD8-63/12-2.2(S) | 220/380 | 2.2 | 2.0" | 100 | 75 | 69 | 67 | 65 | 63 | 58 | 48 | 30 | 12 | 722 | 567 | 1289 | ||||
| XY90QJD8-75/16-3.0(S) | 220/380 | 3.0 | 2.0" | 100 | 100 | 92 | 90 | 82 | 75 | 60 | 49 | 33 | 15 | 872 | 625 | 1497 | ||||
| XY90QJ8-100/21-4.0(S) | 380 | 4.0 | 2.0" | 100 | 130 | 121 | 116 | 108 | 100 | 81 | 65 | 44 | 20 | 1058 | 700 | 1758 | ||||
| XY90QJ8-135/29-5.5(S) | 380 | 5.5 | 2.0" | 100 | 180 | 168 | 160 | 149 | 135 | 112 | 91 | 62 | 30 | 1385 | 775 | 2160 | ||||
| XY90QJ8-180/39-7.5(S) | 380 | 7.5 | 2.0" | 100 | 240 | 225 | 210 | 200 | 180 | 151 | 122 | 78 | 33 | 1891 | 850 | 2741 | ||||
| MODEL | VOLTAGE | POWER | OUTLET | DIAMETER | FLOW | 0 | 8 | 10 | 12 | 14 | 15.5 | PUMP BODY | MOTOR | TOTAL | ||||||
| (V) | (kW) | (mm) | (mm) | (mm) | (mm) | |||||||||||||||
| XY90QJD10-30/7-1.5(S) | 220/380 | 1.5 | 2.0" | 100 | HEAD (mm) | 40 | 33 | 30 | 26 | 21 | 16 | 572 | 507 | 1079 | ||||||
| XY90QJD10-35/8-1.8(S) | 220/380 | 1.8 | 2.0” | 100 | 45 | 38 | 35 | 30 | 24 | 19 | 620 | 532 | 1153 | |||||||
| XY90QJD10-40/10-2.2(S) | 220/380 | 2.2 | 2.0" | 100 | 50 | 45 | 40 | 35 | 28 | 25 | 716 | 567 | 1283 | |||||||
| XY90QJD10-50/13-3.0(S) | 220/380 | 3.0 | 2.0" | 100 | 65 | 56 | 50 | 46 | 40 | 33 | 896 | 625 | 1521 | |||||||
| XY90QJ10-70/17-4.0(S) | 380 | 4.0 | 2.0" | 100 | 90 | 75 | 70 | 64 | 56 | 46 | 1087 | 700 | 1787 | |||||||
| XY90QJ10-90/23-5.5(S) | 380 | 5.5 | 2.0” | 100 | 120 | 98 | 90 | 82 | 72 | 62 | 1411 | 775 | 2186 | |||||||
| XY90QJ10-120/30-7.5(S) | 380 | 7.5 | 2.0" | 100 | 160 | 130 | 120 | 110 | 95 | 85 | 1869 | 850 | 2719 | |||||||
| MODEL | VOLTAGE | POWER | OUTLET | DIAMETER | FLOW | 0 | 8 | 10 | 12 | 15 | 16 | 18 | 20 | 22 | PUMP BODY | MOTOR | TOTAL | |||
| (V) | (kW) | (mm) | (mm) | (mm) | (mm) | |||||||||||||||
| XY90QJD15-21/6-1.5(S) | 220/380 | 1.5 | 2.0” | 100 | HEAD (mm) | 35 | 28 | 25 | 23 | 21 | 19 | 16 | 13 | 10 | 654 | 507 | 1161 | |||
| XY90QJD15-25/7-1.8(S) | 220/380 | 1.8 | 2.0” | 100 | 40 | 33 | 29 | 27 | 25 | 22 | 19 | 16 | 12 | 723 | 532 | 1255 | ||||
| XY90QJD15-32/9-2.2(S) | 220/380 | 2.2 | 2.0” | 100 | 50 | 42 | 38 | 35 | 32 | 29 | 24 | 20 | 15 | 862 | 567 | 1429 | ||||
| XY90QJD15-42/12-3.0(S) | 220/380 | 3.0 | 2.0" | 100 | 70 | 57 | 50 | 47 | 42 | 38 | 32 | 27 | 20 | 1106 | 625 | 1731 | ||||
| XY90QJ15-55/16-4.0(S) | 380 | 4.0 | 2.0" | 100 | 90 | 75 | 68 | 65 | 55 | 52 | 44 | 37 | 30 | 1384 | 700 | 2084 | ||||
| XY90QJ15-75/21-5.5(S) | 380 | 5.5 | 2.0" | 100 | 120 | 100 | 92 | 85 | 75 | 68 | 60 | 50 | 40 | 1818 | 775 | 2593 | ||||
| XY90QJ15-95/27-7.5(S) | 380 | 7.5 | 2.0" | 100 | 150 | 130 | 120 | 110 | 95 | 90 | 75 | 65 | 52 | 2306 | 850 | 3156 | ||||
