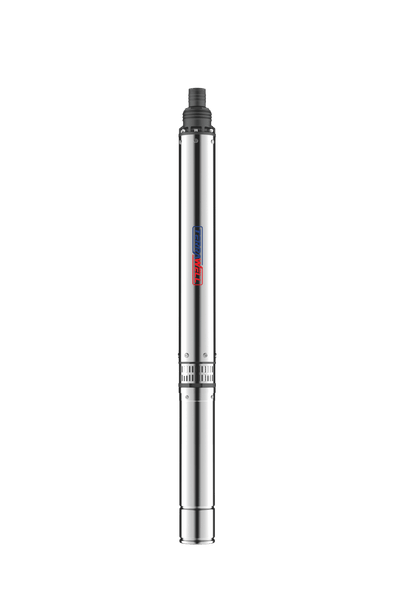

130QJ Deep-well Pump

Pump Well. Trust Swell111

130QJ

Deep-well Pump

Construction sites/factories

Farmland

Greenhouses and orchards

Livestock farming

130QJ series deep well submersible pump adopts IP68 waterproof rewindable F-class motor , featuring reliable high-lift performance, which is widely applied in agricultural irrigation, municipal water supply, industrial water intake and plateau mountain water supply projects.

01 / 03

Working Condition

Medium Temperature

0~+35°C

Ambient Temperature

≤40°C

Protection

IP68

Max. immersion depth

120m

Pump

S.S. pump body
Cast iron outlet,optional S.S.outlet
With oil-filled motor
Plastic multi-stage impeller
Separeted motor structure

Motor

Motor conforms to US NEMA standards

Single Phase: 220~240V/50Hz/60Hz

Three Phase: 380~415V/50Hz/60Hz

Motors of other voltages are available upon request.

Optional with thermal protector

Insulation Class: F

Product Parameters

MODEL	VOLTAGE	POWER	OUTLET	DIAMETER	FLOW	0	2	4	6	8	10	12	14	16	PUMP BODY	MOTOR	TOTAL
MODEL	(V)	(kW)	OUTLET	(mm)	FLOW	0	2	4	6	8	10	12	14	16	(mm)	(mm)	(mm)
130QJ8-60/7-1.5	220/380	1.5	1.75"	127	HEAD (mm)	70	66	64	62	60	50	32	20	5m	586	432	1018
130QJ8-80/9-2.2	220/380	2.2	1.75"	127		90	87	85	83	80	63	40	25	8	664	452	1116
130QJ8-100/12-3.0	220/380	3.0	1.75"	127		125	120	110	105	100	85	61	43	10	820	492	1312
130QJ8-120/15-4.0	380	4.0	1.75"	127		150	142	132	127	120	100	68	48	12	936	520	1456
130QJ8-160/20-5.5	380	5.5	1.75"	127		200	190	180	170	160	130	110	70	15	1130	594	1724
130QJ8-220/28-7.5	380	7.5	1.75"	127		270	260	250	240	220	185	160	115	50	1480	674	2154

MODEL	VOLTAGE	POWER	OUTLET	DIAMETER	FLOW	0	6	8	10	12	14		16	18	20	22		24	PUMP BODY	MOTOR	TOTAL
MODEL	(V)	(kW)	OUTLET	(mm)	FLOW	0	6	8	10	12	14		16	18	20	22		24	(mm)	(mm)	(mm)
130QJ12-35/5-1.5	220/380	1.5	2.0”	127	HEAD (mm)	50	46	44	42	35	34		27	23	19	13		6	543	432	975
130QJ12-45/7-2.2	220/380	2.2	2.0"	127		60	55	52	48	45	41		36	31	25	17		8	635	452	1087
130QJ12-60/9-3.0	220/380	3.0	2.0”	127		80	72	68	64	60	54		47	41	32	21		11	727	492	1248
130QJ12-80/11-4.0	380	4.0	2.0"	127		100	92	88	84	80	71		58	50	40	26		13	808	520	1331
130QJ12-105/15-5.5	380	5.5	2.0”	127		140	126	119	112	105	91		79	68	54	36		18	1041	594	1565
130QJ12-150/20-7.5	380	7.5	2.0"	127		180	169	162	157	150	135		115	91	72	48		23	1309	674	1983

MODEL	VOLTAGE	POWER	OUTLET	DIAMETER	FLOW	0	5		10	15		20		25	30		35		PUMP BODY	MOTOR	TOTAL
MODEL	(V)	(kW)	OUTLET	(mm)	FLOW	0	5		10	15		20		25	30		35		(mm)	(mm)	(mm)
130QJ20-35/6-3	220/380	3.0	2.5"	127	HEAD (mm)	55	50		48	41		35		30	20		15		786	492	1278
130QJ20-40/7-4	380	4.0	2.5"	127		60	55		52	48		40		33	23		16		874	520	1394
130QJ20-52/9-5.5	380	5.5	2.5"	127		80	75		70	62		52		45	32		18		1049	594	1643
130QJ20-70/12-7.5	380	7.5	2.5"	127		100	95		87	80		70		58	42		22		1313	674	1987
130QJ20-85/15-9.2	380	9.2	2.5"	127		135	125		115	100		85		70	50		25		1577	759	2336
130QJ20-105/18-11	380	11	2.5"	127		160	150		135	120		105		82	58		30		1841	843	2684
130QJ20-120/21-13	380	13	2.5"	127		195	179		162	142		120		95	69		38		2104	893	2997
130QJ20-140/24-15	380	15	2.5"	127		210	200		185	165		140		112	80		42		2368	943	3311
