QWK
Stainless Steel Submersible Pump
Drainage and sewage
Commercial buildings
Construction sites/factories
Livestock farming

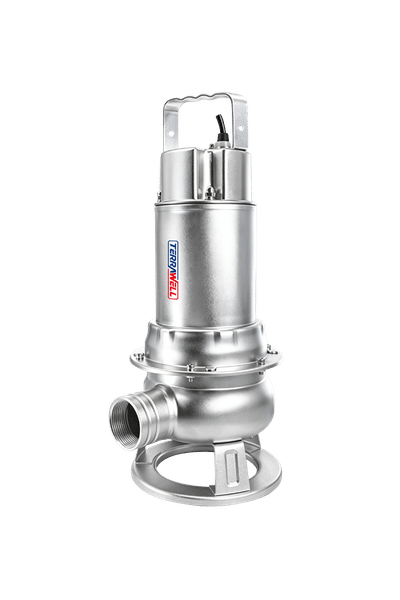

QWK is S.S. sewage submersible pump equipped with s a wide open impeller for passing of solids up to 350mm. With IP68 waterproof S.S. motor housing & thermal protection for single-phase motors, this pump is widely used for sewage drainage, farm irrigation and basement water removal. It comes with a standard 10m cable, and an optional float switch supports automatic running.
01
/
03
Working Condition
Medium temperature
0~+50°C
Ambient temperature
≤40°C
Max. sand content
≦30mm
PH Value
6.5~8.5
Protection
IP 68
Max. immersion depth
5m
Pump
- S.S.304 pump body
- S.S.304 impeller
- High-temperature resistant bearings
- Pure copper motor windings
- Double end mechanical seal
- With optional electric float switch
Motor
Single Phase: 220~240V/50Hz
Three Phase: 380~415V/50Hz
Motors of other voltages are available upon request.
With thermal protector
Insulation Class: F
Product Parameters
| MODEL | POWER | MAX. FLOW (m³/h) |
MAX. HEAD (m) |
SPEED (rpm) |
INLET OUTLET |
|
| (kW) | (HP) | |||||
| QWK75(MA) | 0.55 | 0.75 | 14 | 9 | 2900 | G1.5 |
| QWK100(MA) | 0.75 | 1 | 16 | 10 | 2900 | G1.5 |
| QWK130(MA) | 1.0 | 1.34 | 18 | 13 | 2900 | G1.5 |
| QWK150(MA) | 1.1 | 1.5 | 28 | 11 | 2900 | G2 |
| QWK200(MA) | 1.5 | 2 | 32 | 13.5 | 2900 | G2 |
| QWK300 | 2.2 | 3 | 38 | 16.5 | 2900 | G2 |
| QWKF75(MA) | 0.55 | 0.75 | 14 | 9 | 2900 | DN40 |
| QWKF100(MA) | 0.75 | 1 | 16 | 10 | 2900 | DN40 |
| QWKF130(MA) | 1 | 1.34 | 18 | 13 | 2900 | DN40 |
| QWKF150(MA) | 1.1 | 1.5 | 28 | 11 | 2900 | DN50 |
| QWKF200(MA) | 1.5 | 2 | 32 | 13.5 | 2900 | DN50 |
| QWKF300 | 2.2 | 3 | 38 | 16.5 | 2900 | DN50 |
