Pump Well. Trust Swell111

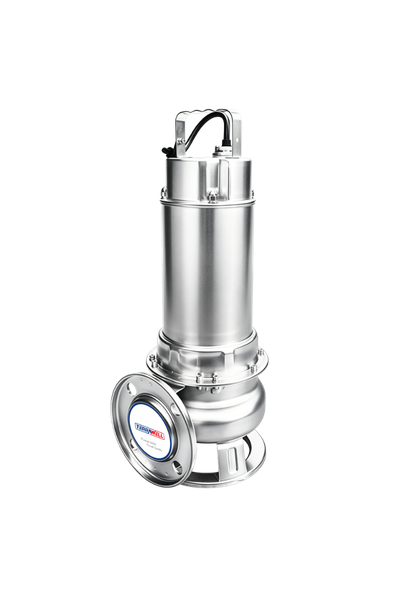

QWKF
Stainless Steel Submersible Pump
Drainage and sewage
Commercial buildings
Construction sites/factories
Livestock farming
QWKF is the flange outlet version of QWK stainless steel sewage pump, featuring SUS304 housing for long service life in sewage and slightly corrosive water. It is fitted with a wide open anti-clog impeller, double-end mechanical seal and full copper motor with built-in thermal protection. Delivering stable drainage performance, optional float switch is available for automatic operation.
01
/
03
Working Condition
Medium temperature
0~+50°C
Ambient temperature
≤40°C
Max. sand content
≦30mm
PH Value
6.5~8.5
Protection
IP 68
Max. immersion depth
5m
Pump
- S.S.304 pump body
- S.S.304 impeller
- High-temperature resistant bearings
- Pure copper motor windings
- Double end mechanical seal
- With optional electric float switch
Motor
Single Phase: 220~240V/50Hz
Three Phase: 380~415V/50Hz
Motors of other voltages are available upon request.
With thermal protector
Insulation Class: F
Product Parameters
| Model | Power(P2)kW | （Amps） | Hmax (m) |
Qmax (m³/h) |
Outlet | |
| 220V/50Hz | 380V/50Hz | |||||
| QWKF75(MA) | 0.55 | 3.8 | 1.4 | 9 | 14 | DN40 |
| QWKF100(MA) | 0.75 | 5.2 | 1.8 | 10 | 16 | DN40 |
| QWKF130(MA) | 1.0 | 6.2 | 2.4 | 13 | 18 | DN40 |
| QWKF150(MA) | 1.1 | 7.0 | 2.6 | 11 | 28 | DN50 |
| QWKF200(MAA) | 1.5 | 9.2 | 3.5 | 13.5 | 32 | DN50 |
| QWKF300 | 2.2 | / | 4.9 | 16.5 | 38 | DN50 |
