Pump Well. Trust Swell111

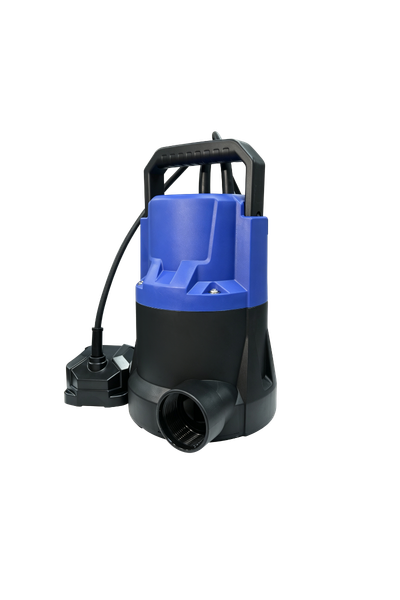

T1CP
Low Suction pump
Greenhouses and orchards
Commercial buildings
T1CP is plastic low‑suction pump, built with corrosion‑proof thermoplastic components for light‑weight and rust‑free performance. Featuring low‑level suction design for minimal residual water, it comes with thermally protected motor against overload. Perfect for rainwater drainage, pond water transfer and garden irrigation.
01
/
03
Working condition
Medium temperature
0~+35℃
Ambient temperature
≤40°C
Proetction
IP X8
Pump
- Pure copper motor wire
- Wave sensor
- Auto start-stop
- Auto Shallow Water Start
- Portable
- Plastic impeller
- Max.Solid Diameter:≤5mm
Motor
Single Phase: 220~240V/50Hz
Single phase with thermal protector
Insulation Class: F
Product Parameters
| Product NO. | T1CP-250K | T1CP-350K | T1CP-400K | T1CP-550K | T1CP-650K | T1CP-750K |
| P1 Power (W) | 250 | 350 | 400 | 550 | 650W | 750 |
| Max.discharge flow rate(L/H) | 5000 | 5500 | 7000 | 9500 | 10000 | 11000 |
| Max.delivery height(m) | 6 | 6.5 | 7 | 8 | 8 | 8.5 |
| Max.submersion depth(m) | 5 | 7 | 7 | 7 | 7 | 7 |
| Dia.of pipe | 1" , 1-1/4" ,1-1/2" | 1",1-1/4",1-1/2" | 1",1-1/4",1-1/2" | 1",1-1/4",1-1/2" | 1",1-1/4",1-1/2" | 1",1-1/4",1-1/2" |
| Cable (m) | H05RN-F 3G0.75m㎡2x10 |
H05RN-F 3G0.75m㎡x10 |
H05RN-F 3G0.75m㎡x10 |
H05RN-F 3G1.0m㎡2x10 |
H05RN-F 3G1.0m㎡x10 |
H05RN-F 3G1.0mm2x10 |
| Max.grain size(mm) | 3 | 3 | 3 | 3 | 3 | 3 |
| Inner box size (cm) | 22x18x34 | 22x18x34 | 22x18x34 | 22x18x34 | 22x18x34 | 22x18x34 |
| Outer box size (cm/4pcs) | 46x38x36 | 46x38x36 | 46x38x36 | 46x38x36 | 46x38x36 | 46x38.3x36 |
| N.W./G.W. (kgs) | 17.8/20.1 | 18/20.3 | 18.2/20.5 | 20.1/22.4 | 20.2/22.5 | 20.5/22.8 |
| QTY/20'CTN | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 |
