Pump Well. Trust Swell111
EWPC
Preassure Controller
HVAC
Livestock farming
Construction sites/factories
Domestic Water Supply

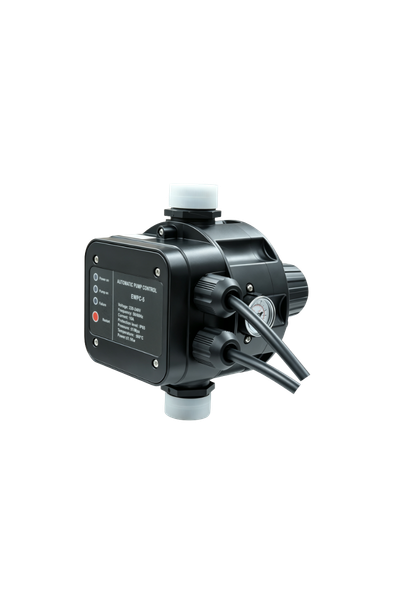

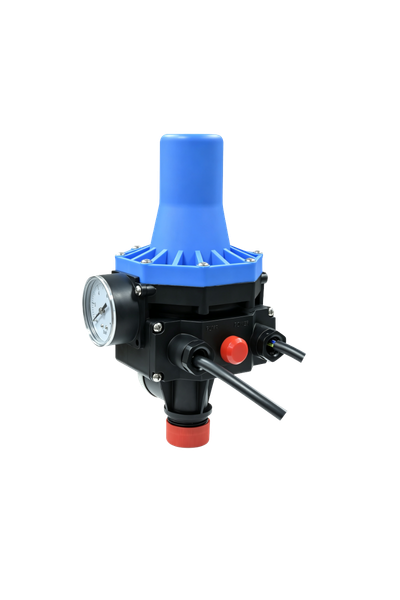

This pump pressure controller is an automatic control device specially designed for household water pumps.
It automatically detects the water pressure inside the pipeline: when the water pressure drops to the preset starting value, it will switch on the pump to start water supply; when the water pressure rises to the set cut-off value, it will shut down the pump automatically.
It automatically detects the water pressure inside the pipeline: when the water pressure drops to the preset starting value, it will switch on the pump to start water supply; when the water pressure rises to the set cut-off value, it will shut down the pump automatically.
01
/
03
Working condition
Preset starting pressure
1.2~2.2bar
Proetction
IP65
Controller
- INLET*OUTLET : G1"~G1 1/2" NPT 1"
- Max.Fluid Temperature : 0~+55°C
Motor
Single Phase:
110-240V/50/60HZ
220-240V /50/60HZ
Product Parameters
| MODEL | EWPC-1 | EWPC-3 | EWPC-5 | |||
| TYPE | RATING | Style 2 | RATING | Style 2 | RATING | Style 2 |
| Voltage | 220-240V | 110-240V | 220-240V | 110-240V | 220-240V | 110-240V |
| Frequency | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ |
| Max. Power | 1.5KW | 1.1KW | 1.1KW | 0.55KW | 1.1KW | 0.55KW |
| Preset starting pressure | 2.2bar | 2.2bar | 1.5bar | 1.2bar | 2.2bar | 1.5bar |
| Max. Working Pressure | 10bar | 10bar | 10bar | 10bar | 10bar | 10bar |
| Connection size | G1" | NPT1" | G11/4" | NPT1" | G11/2" | NPT1" |
| IP | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Max.Working Tem. | 55℃ | 55℃ | 55℃ | 55℃ | 55℃ | 55℃ |
