JYC/P Permanent Magnet Variable Frequency SS Multi-Stage Pump

Pump Well. Trust Swell111

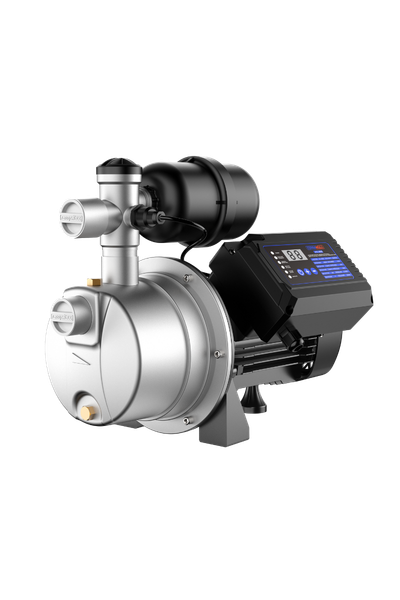

JYC/P

Permanent Magnet Variable Frequency SS Multi-Stage Pump

Domestic Water Supply

Commercial buildings

Farmland

Greenhouses and orchards

HVAC

JYC/P is a permanent magnet variable frequency stainless steel multi-stage pump. It features AISI304 stainless steel pump body and PPO flow channel, fitted with an intelligent variable frequency controller. Equipped with high-efficiency permanent magnet motor, it delivers energy-saving, constant-pressure water supply. With F-class insulation and IPX4 protection, wide voltage 180–230V (50/60Hz), it is ideal for household, commercial water boosting and hot water circulation.

01 / 03

Working Condition

Medium temperature

0~+80°C

Ambient temperature

≤40°C

Protection

IPX4

Product Features

With self-priming capability
Variable frequency voltage control
Constant pressure delivery
Fault diagostics with alert
High and low temperature protection
Low noise
Effcient performance
AISI304 S.S. pump body
PPO flow channel
PPO impeller
Three-staged with larger flow and higher head

Motor

Permanent magnet motor

Single Phase: 180～230V 50Hz/60Hz

Insulation Class: F

Product Parameters

MODEL	POWER		MAX.HEAD (m)	MAX.FLOW (L/min)	MAX SUCTION (m)	SPEED rpm	INLET OUTLET
MODEL	(kW)	(HP)	MAX.HEAD (m)	MAX.FLOW (L/min)	MAX SUCTION (m)	SPEED rpm	INLET OUTLET
JYC203P	0.4	0.55	32	80	6	3800	1"*1”
JYC204P	0.8	1.10	42	100	6	3800	1"*1”
