Pump Well. Trust Swell111
JYC/S

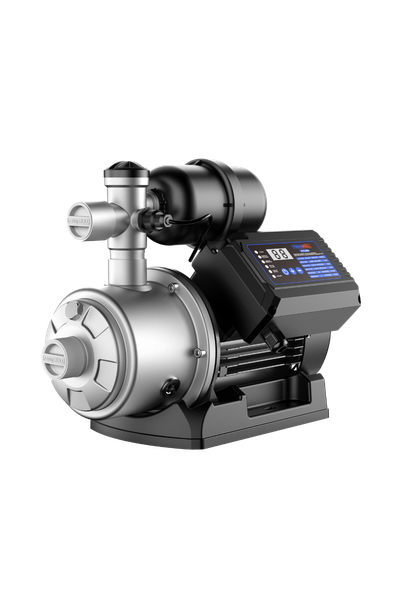

Permanent Magnet Variable Frequency SS Multi-Stage Pump
Domestic Water Supply
Commercial buildings
Farmland
Greenhouses and orchards
HVAC
JYC/S is a permanent magnet variable frequency stainless steel multi-stage pump. It adopts AISI304 stainless steel pump body and PPO flow channel.Powered by a high-efficiency permanent magnet motor with premium bearings, the pump features low energy consumption, fault diagostics with alert, high and low temperature protection, and stable quiet operation. It is widely used in household water boosting, commercial water supply and hot water circulation systems.
01
/
03
Working Condition
Medium temperature
0~+80°C
Ambient temperature
≤40°C
Protection
IPX4
Product Features
- Variable frequency voltage control
- Constant pressure delivery
- Fault diagostics with alert
- High and low temperature protection
- Low noise
- Effcient performance
- AISI304 S.S. pump body
- PPO flow channel
- AISI304 S.S. impeller
- AISI304 S.S. welding shaft
- 4 staged with larger flow and high head
Motor
Permanent magnet motor
Single Phase: 180～230V 50Hz/60Hz
Insulation Class: F
Product Parameters
| MODEL | POWER | MAX.HEAD (m) | MAX.FLOW (L/min) | SPEED rpm |
INLET OUTLET | |
| (kW) | (HP) | |||||
| JYC203S | 0.4 | 0.55 | 44 | 85 | 3800 | 1"*1” |
| JYC204S | 0.8 | 1.10 | 55 | 100 | 3800 | 1"*1” |
