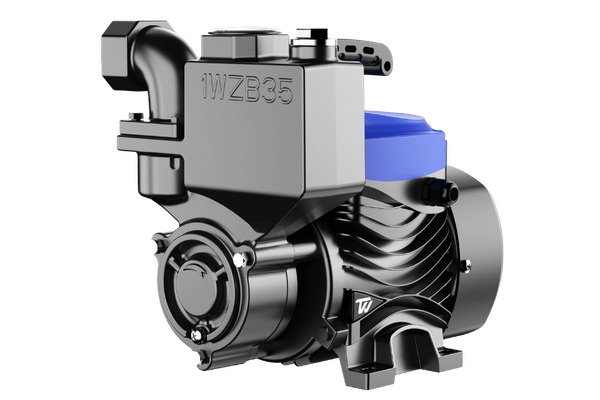

1WZB Self-priming Peripheral Pump

Pump Well. Trust Swell111

1WZB

Self-priming Peripheral Pump

Domestic Water Supply

Commercial buildings

Farmland

Greenhouses and orchards

1WZB is a self-priming peripheral pump with a strong self-priming capacity with maximum suction lift up to 9 meters. It is ideal for household water boosting, well water extraction, small farm irrigation and general water circulation.

01 / 03

Working Condition

Medium temperature

0~+60°C

Ambient temperature

≤40°C

Protection

IPX4

Product Features

Brass peripheral impeller
High suction with 9m
With check valve
With high head
With plastic handle
Brass impeller
AISI304 S.S. welding shaft
Pure copper winding

Motor

Single Phase: 180～230V 50Hz/60Hz

Single phase with thermal protector

Motors of other voltages are available upon request.

Insulation Class: F

Product Parameters

MODEL	POWER		MAX.HEAD (m)	MAX.FLOW (L/min)	MAX SUCTION (m)	SPEED rpm	INLET OUTLET
MODEL	(kW)	(HP)	MAX.HEAD (m)	MAX.FLOW (L/min)	MAX SUCTION (m)	SPEED rpm	INLET OUTLET
1WZB35	0.37	0.5	40	45	9	2900	1"*1”
1WZB45	0.60	0.8	50	55	9	2900	1"*1"
1WZB65	0.75	1.0	70	60	9	2900	1"*1"
