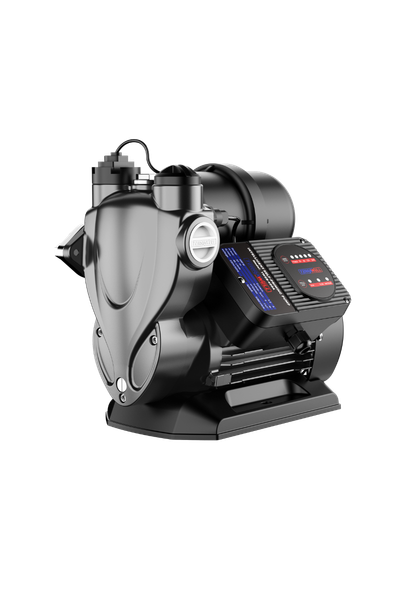

1WZB/S Automatic Self-priming Pump

Pump Well. Trust Swell111

1WZB/S

Automatic Self-priming Pump

Domestic Water Supply

Commercial buildings

Farmland

Greenhouses and orchards

1WZB/S automatic self-priming pump with 9m max. suction lift. It involves several functions:optional protective cover, time controller, auto start-stop, dry-run protection, overload protection, sensitive pressure control. It is equipped with 2L pressure tank, ideal for household water pressurization and water supply.

01 / 03

Working Condition

Medium temperature

0~+60°C

Ambient temperature

≤40°C

Protection

IPX4

Product Features

Intelligent water supply
Time controller
Auto start-stop
Dry-run protection
Overload protection
Sensitive pressure control
With check valve
With 2L pressure tank
Powerful self-priming
With S.S. insert
Brass impeller
AISI304 S.S. welding shaft
Pure copper winding

Motor

Single Phase: 180～230V 50Hz/60Hz

Single phase with thermal protector

Insulation Class: F

Product Parameters

MODEL	POWER		MAX.HEAD (m)	MAX.FLOW (L/min)	MAX SUCTION (m)	SPEED rpm	INLET OUTLET
MODEL	(kW)	(HP)	MAX.HEAD (m)	MAX.FLOW (L/min)	MAX SUCTION (m)	SPEED rpm	INLET OUTLET
1WZB-200S	0.20	0.3	27	35	9	2900	1"*1"
1WZB-300S	0.30	0.4	32	37	9	2900	1"*1"
1WZB-400S	0.40	0.6	37	40	9	2900	1"*1"
1WZB-600S	0.60	0.8	45	50	9	2900	1"*1"
1WZB-800S	0.80	1.1	55	60	9	2900	1"*1"
