Pump Well. Trust Swell111
MJm/C

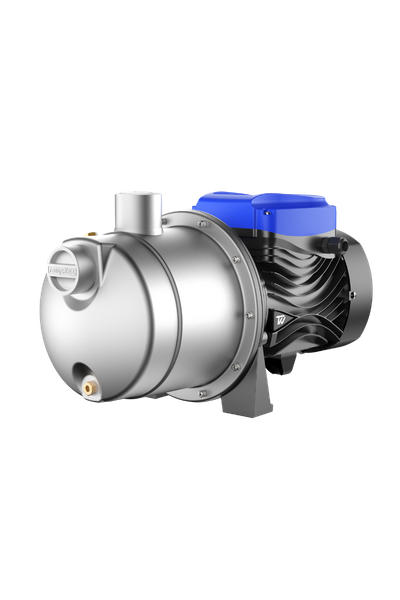

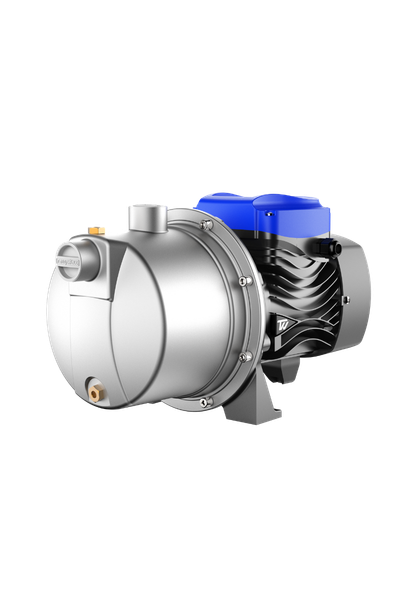

Stainless Steel JET Pump
Domestic Water Supply
Commercial buildings
Farmland
Greenhouses and orchards
MJm/C is stainless steel pump is built for stable high‑efficiency irrigation and clean‑water transfer, this pump meets all your water‑supply demands. It delivers impressive suction power. The 304 stainless‑steel pump head prevents rust and guarantees clean household drinking‑water.
01
/
03
Working Condition
Medium temperature
-10~+60°C
Ambient temperature
≤50°C
Protection
IPX4
Pump
- AISI304 S.S. pump body
- AISI304 S.S. impeller
- AISI304 S.S. welding shaft
- Pure copper winding
Motor
Single Phase: 180～230V 50Hz/60Hz
Three Phase: 340～410V 50Hz/60Hz
Motors of other voltages are available upon request.
Single phase with thermal protector
Insulation Class: F
Product Parameters
| MODEL | POWER | MAX.HEAD (m) | MAX.FLOW (L/min) | MAX SUCTION (m) |
SPEED rpm | INLET OUTLET |
|
| (kW) | (HP) | ||||||
| MJm61C | 0.37 | 0.5 | 33 | 60 | 9 | 2900 | 1“x1” |
| MJm81C | 0.6 | 0.8 | 40 | 60 | 9 | 2900 | 1“x1” |
| MJm101C | 0.75 | 1 | 48 | 80 | 9 | 2900 | 1“x1” |
| MJm102C | 1.1 | 1.5 | 52 | 80 | 9 | 2900 | 1“x1” |
| MJm180C | 1.1 | 1.5 | 52 | 140 | 9 | 2900 | 1.5"x1.5" |
| MJm200C | 1.5 | 2 | 60 | 150 | 9 | 2900 | 1.5"x1.5" |
