Pump Well. Trust Swell111
MJWm
JET Pump
Domestic Water Supply
Commercial buildings
Farmland
Greenhouses and orchards

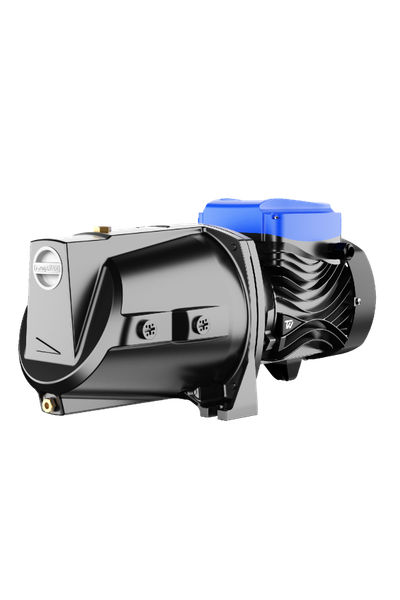

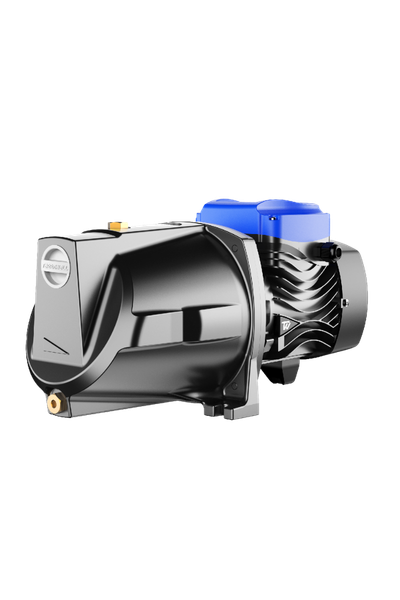

MJWm is self-priming jet pump with anti-corrosive electrophoresis coating pump body, SS304 shaft, copper winding, cold-rolled silicon steel. It is used for irrigation systems of gardens, vegetable gardens, greenhouses, and greenhouses.
01
/
03
Working Condition
Medium temperature
0~+60°C
Ambient temperature
≤40°C
Protection
IPX4
Pump
- Electrophoretic for cast iron pump body
- PPO/S.S./Brass impeller
- AISI304 S.S. welding shaft
- Pure copper winding
- High temperature-resistance PPO ejector
Motor
Single Phase: 180～230V 50Hz/60Hz
Three Phase: 340～410V 50Hz/60Hz
Motors of other voltages are available upon request.
Single phase with thermal protector
Insulation Class: F
Product Parameters
| MODEL | POWER | MAX.HEAD (m) | MAX.FLOW (L/min) | MAX SUCTION (m) |
SPEED rpm | INLET OUTLET |
|
| (kW) | (HP) | ||||||
| MJWm/1CE | 0.37 | 0.5 | 35 | 50 | 9 | 2900 | 1"*1" |
| MJWm/1BE | 0.50 | 0.7 | 40 | 50 | 9 | 2900 | 1"*1" |
| MJWm/10M | 0.75 | 1.0 | 45 | 80 | 9 | 2900 | 1"*1" |
| MJWm/10H | 0.75 | 1.0 | 53 | 60 | 9 | 2900 | 1"*1" |
| MJWm/15M | 1.10 | 1.5 | 50 | 80 | 9 | 2900 | 1"*1" |
| MJWm/15H | 1.10 | 1.5 | 58 | 60 | 9 | 2900 | 1"*1" |
| MJWm/3CM | 1.10 | 1.5 | 50 | 120 | 9 | 2900 | 1.25"*1" |
| MJWm/3CH | 1.10 | 1.5 | 55 | 100 | 9 | 2900 | 1.25"*1" |
| MJWm/3CL | 1.10 | 1.5 | 45 | 150 | 9 | 2900 | 1.25"*1" |
| MJWm/3BM | 1.50 | 2.2 | 55 | 120 | 9 | 2900 | 1.25"*1" |
| MJWm/3BH | 1.50 | 2.2 | 60 | 100 | 9 | 2900 | 1.25"*1" |
| MJWm/3BL | 1.50 | 2.2 | 50 | 150 | 9 | 2900 | 1.25"*1" |
| MJWm/3AM | 2.20 | 3.0 | 70 | 120 | 9 | 2900 | 1.25"*1" |
| MJWm/3AH | 2.20 | 3.0 | 80 | 100 | 9 | 2900 | 1.25"*1" |
| MJWm/3AL | 2.20 | 3.0 | 60 | 150 | 9 | 2900 | 1.25"*1" |
