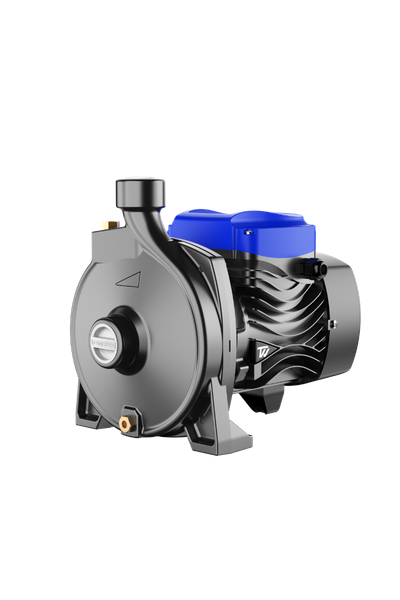

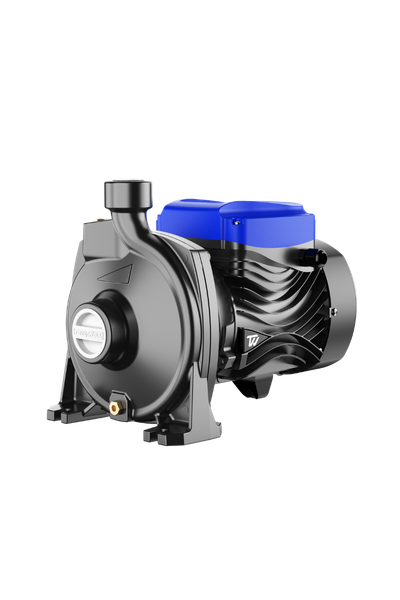

MCm Centrifugal Pump

Pump Well. Trust Swell111

MCm

Centrifugal Pump

Domestic Water Supply

Commercial buildings

Farmland

Greenhouses and orchards

MCm is horizontal clean water centrifugal pumps are suitable for pumping clean water and non‑corrosive liquids that will not chemically attack the pump’s construction materials. Boasting solid reliability and effortless operation, they are extensively applied for domestic and civil‑purpose tasks. Common‑use scenarios include water distribution paired with small‑to‑medium pressure booster units, general‑purpose liquid transport, and irrigation for gardens and allotments.

01 / 03

Working Condition

Medium temperature

0~+60°C

Ambient temperature

≤40°C

Protection

IPX4

Pump

Electrophoretic for cast iron pump body
PPO/S.S./Brass impeller
AISI304 S.S. welding shaft
Pure copper winding

Motor

Single Phase: 180～230V 50Hz/60Hz

Three Phase: 340～410V 50Hz/60Hz

Motors of other voltages are available upon request.

Single phase with thermal protector

Insulation Class: F

Product Parameters

MODEL	POWER		MAX.HEAD (m)	MAX.FLOW (L/min)	MAX SUCTION (m)	SPEED rpm	INLET OUTLET
MODEL	(kW)	(HP)	MAX.HEAD (m)	MAX.FLOW (L/min)	MAX SUCTION (m)	SPEED rpm	INLET OUTLET
MCm100	0.25	0.33	18	90	8	2900	1"*1"
MCm130	0.37	0.5	23	90	8	2900	1"*1"
MCm146	0.6	0.8	28	120	8	2900	1"*1"
MCm158	0.75	1	33	120	8	2900	1"*1"
MCm170	1.1	1.5	38	140	8	2900	1"*1"
MCm170M	1.1	1.5	36	160	8	2900	1.25"*1"
MCm190	1.5	2	48	130	8	2900	1"*1"
MCm190M	1.5	2	45	150	8	2900	1.25"*1"
MCm25/160B	1.1	1.5	32	180	8	2900	1.5"*1"
MCm25/160A	1.5	2	38	200	8	2900	1.5"*1"
MCm32/160B	1.1	1.5	28	210	8	2900	2"*1.25"
MCm32/160A	1.5	2	33	230	8	2900	2"*1.25"
MCm32/200A	2.2	3	40	260	8	2900	2"*1.25"
MCm40/160B	1.1	1.5	29	300	8	2900	2"*1.5"
MCm40/160A	1.5	2	32	310	8	2900	2"*1.5"
MCm40/200A	2.2	3	38	330	8	2900	2"*1.5"
