Pump Well. Trust Swell111
MGm
Centrifugal Pump
Domestic Water Supply
Commercial buildings
Farmland
Greenhouses and orchards

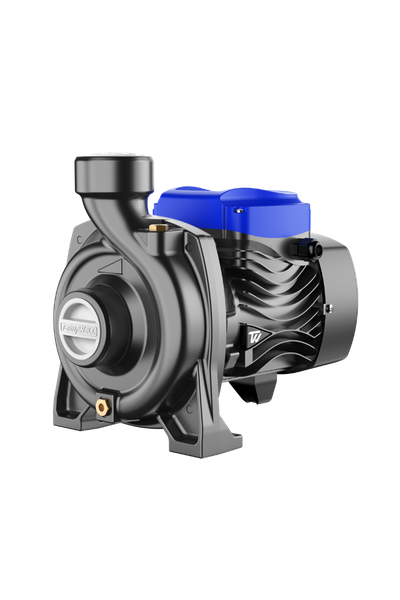

MGm‑series horizontal centrifugal pumps are engineered to transport clean water and other liquids with physical‑chemical properties comparable to water.
Boasting dependable performance, straightforward operation and favourable cost‑efficiency, they are well‑suited for domestic‑scenario uses including rural water supply, garden irrigation and small‑scale domestic‑water delivery.
Boasting dependable performance, straightforward operation and favourable cost‑efficiency, they are well‑suited for domestic‑scenario uses including rural water supply, garden irrigation and small‑scale domestic‑water delivery.
01
/
03
Working Condition
Medium temperature
0~+60°C
Ambient temperature
≤40°C
Protection
IPX4
Pump
- Electrophoretic for cast iron pump body
- Brass/Cast iron impeller
- Semi-open impeller
- AISI304 S.S. welding shaft
- Pure copper winding
Motor
Single Phase: 180～230V 50Hz/60Hz
Three Phase: 340～410V 50Hz/60Hz
Motors of other voltages are available upon request.
Single phase with thermal protector
Insulation Class: F
Product Parameters
| MODEL | POWER | MAX.HEAD (m) | MAX.FLOW (L/min) | MAX SUCTION (m) |
SPEED rpm | INLET OUTLET |
|
| (kW) | (HP) | ||||||
| MGm/1B | 0.6 | 0.8 | 17 | 330 | 8 | 2900 | 1.5"*1.5" |
| MGm/1A | 0.75 | 1 | 20 | 330 | 8 | 2900 | 1.5"*1.5" |
