WB/J Hand Well Pump

Pump Well. Trust Swell111

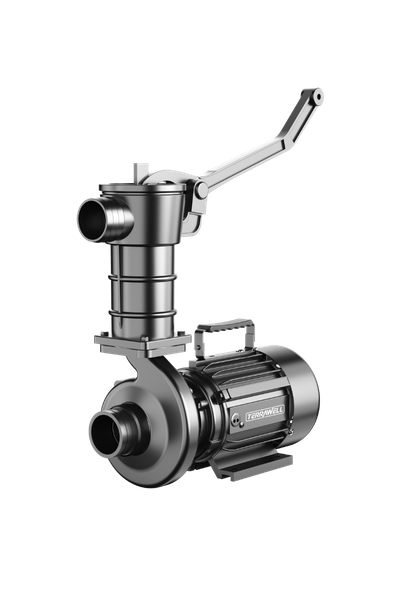

WB/J

Hand Well Pump

Domestic Water Supply

Commercial buildings

Farmland

Greenhouses and orchards

WB/J is hand well pump integrates electric drive with manual hand pump function, specially designed for rural areas with unstable power supply. It can work electrically under normal power supply, and manually pump water via the rocking handle during power outages.

01 / 03

Working Condition

Medium temperature

0~+60°C

Ambient temperature

≤40°C

Protection

IPX4

Pump

Electrophoretic for cast iron pump body
Cast iron impeller
AISI304 S.S. welding shaft
Pure copper winding

Motor

Single Phase: 180～230V 50Hz/60Hz

Three Phase: 340～410V 50Hz/60Hz

Motors of other voltages are available upon request.

Single phase with thermal protector

Insulation Class: F

Product Parameters

MODEL	POWER		MAX.HEAD (m)	MAX.FLOW (L/min)	MAX SUCTION (m)	SPEED rpm	INLET OUTLET
MODEL	(kW)	(HP)	MAX.HEAD (m)	MAX.FLOW (L/min)	MAX SUCTION (m)	SPEED rpm	INLET OUTLET
50WB-J12-12	0.75	1	16	370	8	2900	2"*2"
63WB-J20-10	1.1	1.5	16	470	8	2900	2.5"*2.5"
75WB-J30-10	1.5	2	13	670	8	2900	3"*3"
75WB-J35-15	1.8	2.4	18	670	8	2900	3"*3"
